MOC - MS/SS/CS/PTFE Lined Valves, PVDF, PP, HDPE

Globe & Gate Valves

Globe Valve (CS Valve & SS Valve): BS 5352 / BS 6755 / BS 1873 / ASME B16.34 / DIN 3356.

• Stainless Steel (Bar Stock): Rating 150# / 300# (Size: 8 mm to 100 mm).
• Forged Carbon Steel / Stainless Steel: Rating 150# / 300# / 800# / 1500# (Size: 15 mm to 400 mm).
• Cast Carbon Steel / Stainless Steel, Alloy Steel: Rating 150# / 300# / 600# / 900#.

Gate Valve: BS 1414 / BS 5352 / API 600 / API 602 / API 6D / ASME B16.34 / API 598 (Size: 15 mm to 400 mm).

Cast Iron: Rating 125# / 150# (Size: 25 mm to 600 mm).

Butterfly Valves (CS & SS)

Standards: API 609, BS 5155, IS 13095 (Cast Iron).

• Operating: Lever or Manual Gear.
• Design: Sure Seal, Replaceable, Rubber Lining.
• Ends: Wafer Type or Double Flange.
• Wafer Type / Lug Type Design: Size: 40 mm to 500 mm.
• Offset Disc Operation Design: Size (Lever/Gear, ISI Marked): 350 mm to 1200 mm.

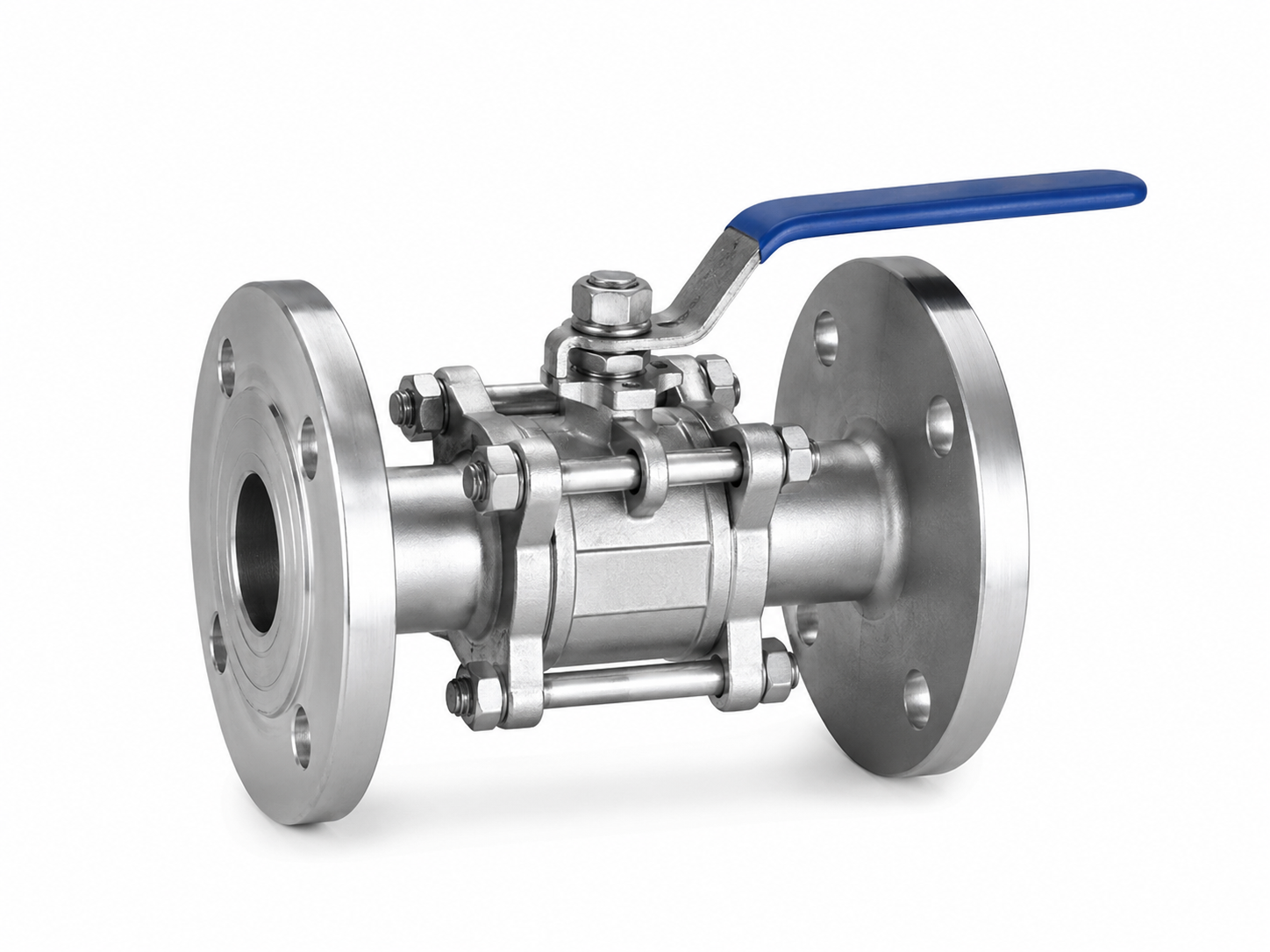

Ball Valves (Forged & Cast)

Stainless Steel (SS 304/316 Bar Stock): Design: 1 PC / 3 PC (Ends: Screwed / Socket Weld / Flanged, Size: 6 mm to 100 mm).

Carbon Steel / Cast Carbon Steel / Polypropylene: Design: 1 PC / 3 PC (Ends: Screwed / Socket Weld / Flanged, Size: 15 mm to 400 mm).

Cast Iron: Design: 1 PC / 3 PC (Ends: Screwed / Socket Weld / Flanged, Size: 15 mm to 100 mm).

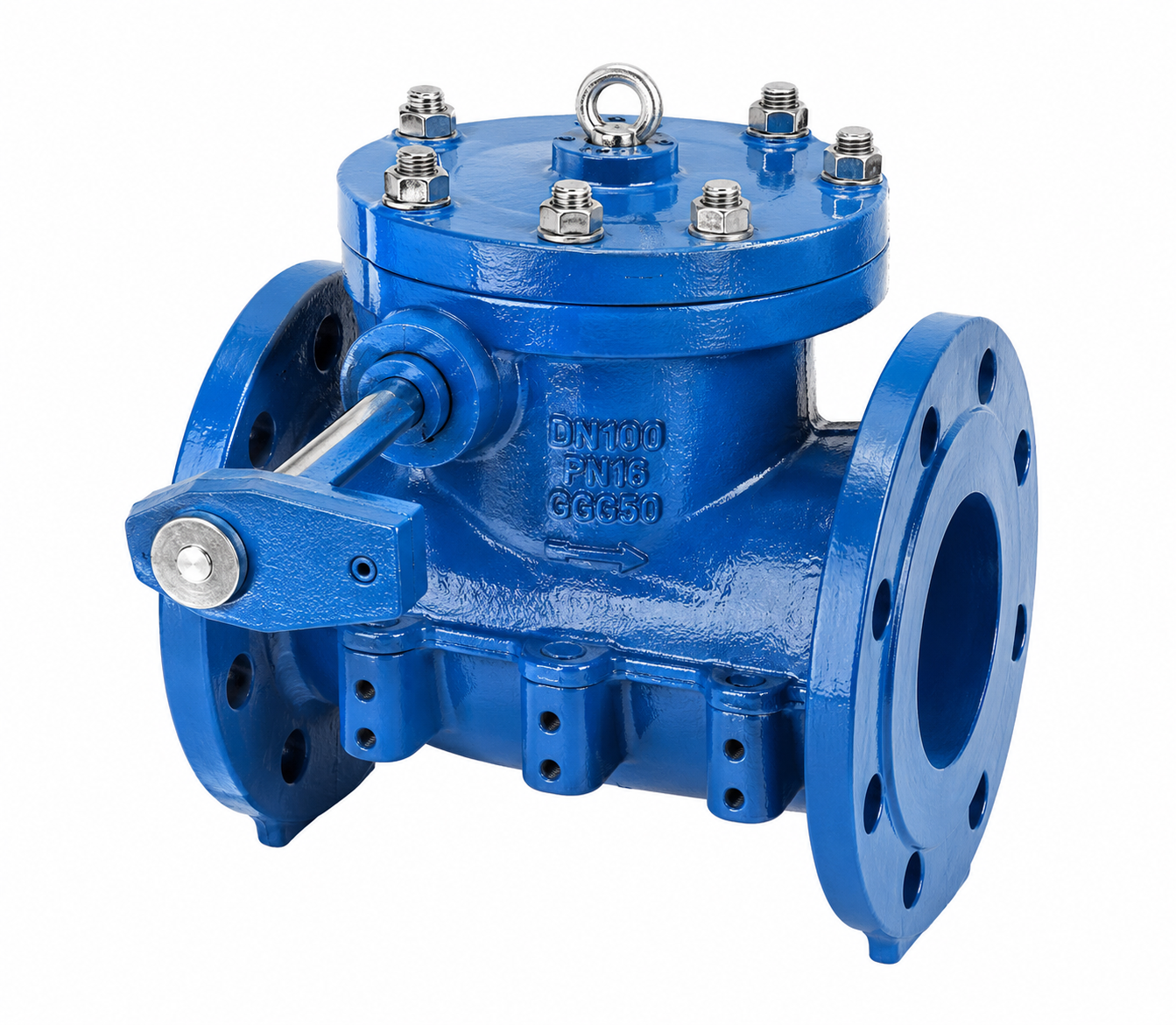

Non Return Valves (Check Valves)

• Stainless Steel (Bar Stock): Rating: 150# / 300# (Size: 8 mm to 100 mm).
• Forged Carbon Steel / Stainless Steel: Rating: 150# / 300# / 800# / 1500# (Size: 15 mm to 400 mm).
• Cast Carbon Steel / Stainless Steel, Alloy Steel: Rating: 150# / 300# / 600# / 900# (Size: 15 mm to 400 mm).
• Cast Iron: Rating: 125# / 150# (Size: 25 mm to 600 mm).

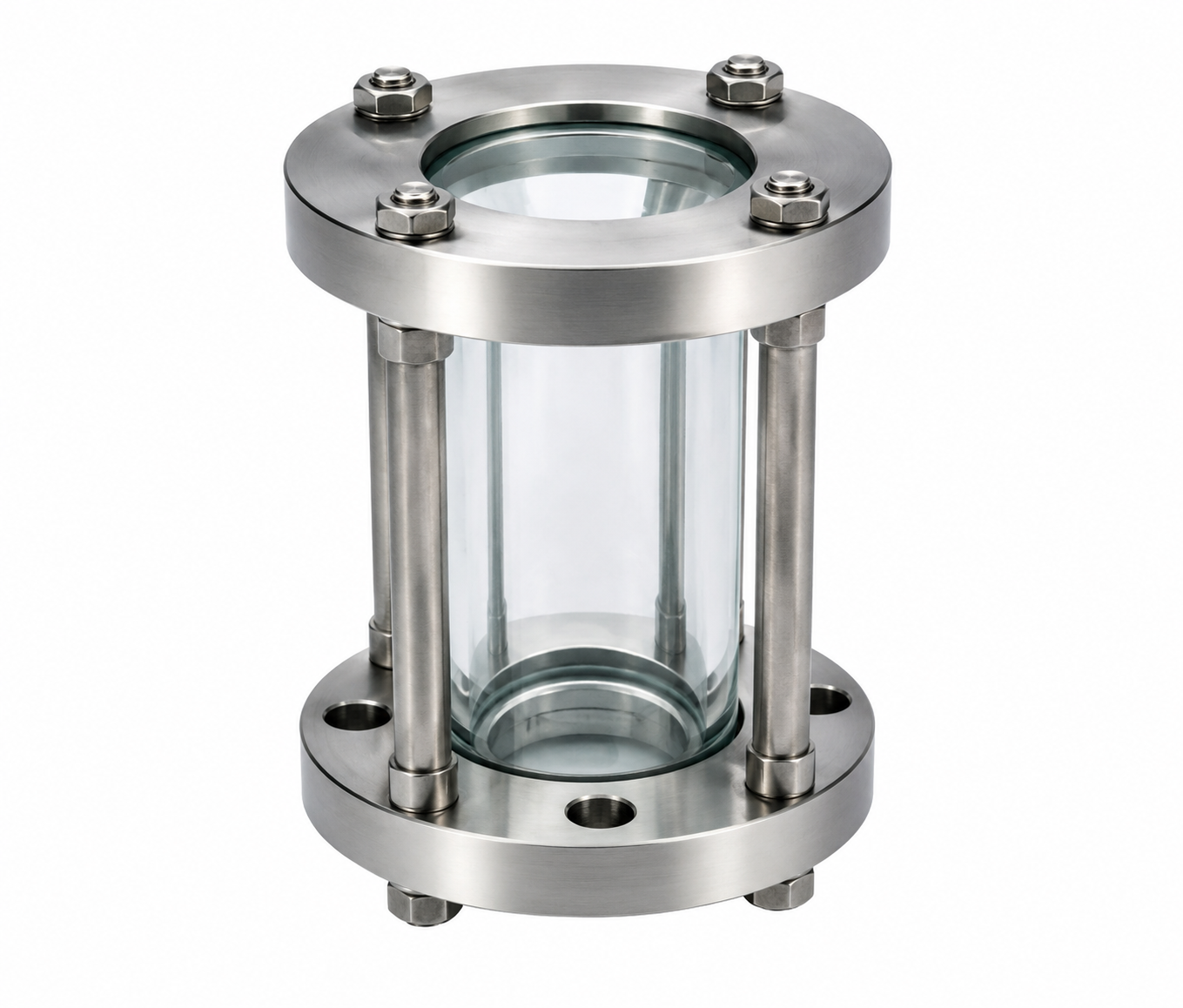

Tube Glass / Tubular Level Gauges

• Carbon Steel (MCC: EN 8, 150#): Size: 15 mm to 100 mm.
• Stainless Steel (MCC: SS 304/316, 150#): Size: 15 mm to 150 mm.
• Investment Casting (MCC: CF8/CF8M, 150#): Size: 24 mm to 150 mm.
