Pump Catalog
Browse our comprehensive range of heavy-duty industrial process pumps with robust construction and chemical compatibility.

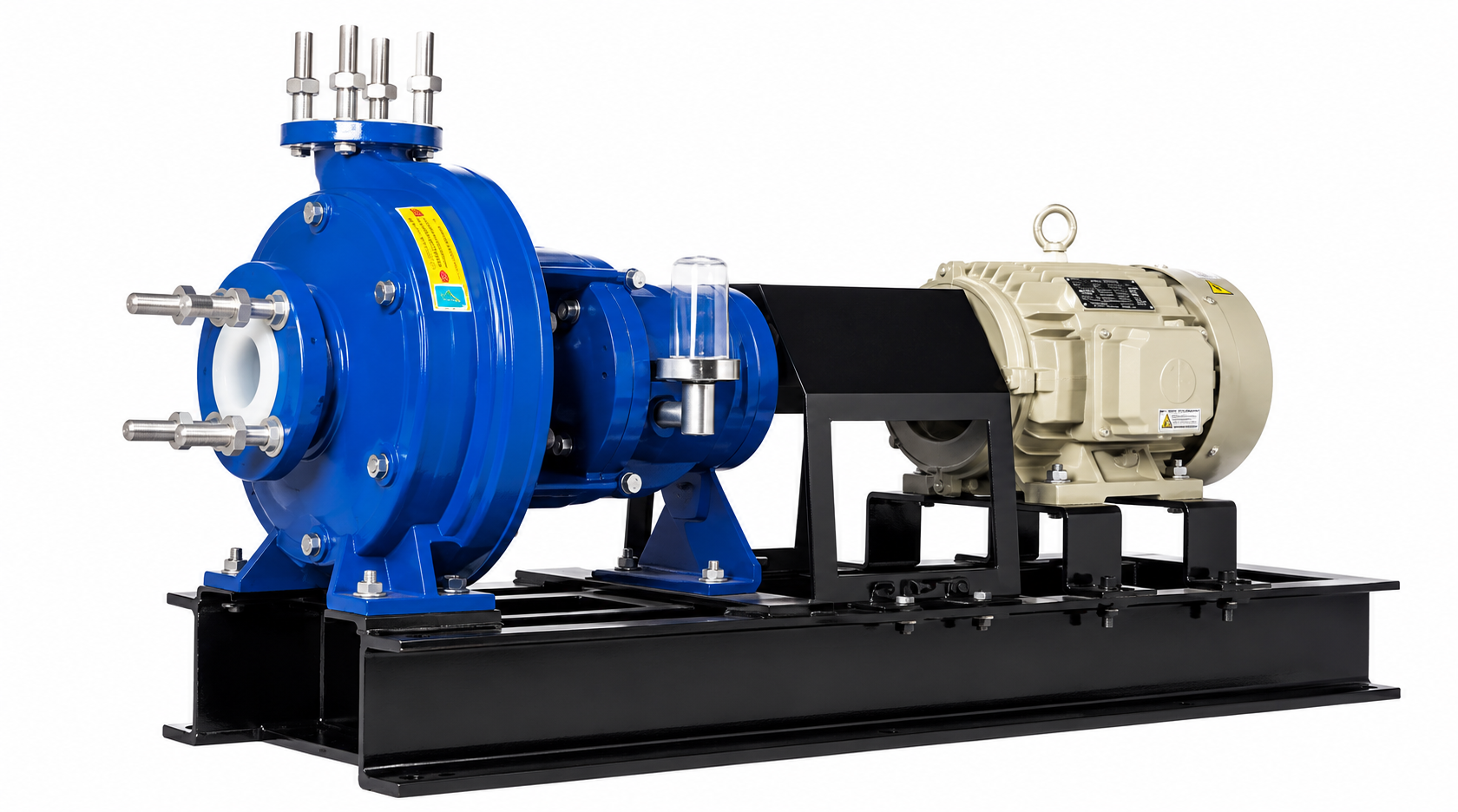

CENTRIFUGAL NON METALLIC LINED CHEMICAL PROCESS PUMP
Available in PP/PPH/PPCP/PVDF/FEP/PFA. Conforms to ISO 2858, ISO 5199, and EN 22858 design criteria.
Centrifugal Non Metallic Lined Chemical Process Pump
Available in PP / PPH / PPCP / PVDF / FEP / PFA. Conforms to ISO 2858 / ISO 5199 / EN 22858 dimensional and design standards.
Key Features
- Robust construction with specialized thermoplastics to handle aggressive and corrosive fluids.
- Precision-machined internal components for maximum hydraulic efficiency and performance.
- Suitable for high-temperature chemical environments up to 200°C.
- Excellent chemical resistance ensuring compatibility with a wide range of aggressive acids/alkalis.
- Low maintenance requirements and reliable operation to minimize lifecycle downtime costs.
Applications
- Chemical processing, petrochemicals, pharmaceuticals, and agrochemical processing.
- Semiconductor manufacturing and electronics (handling ultra-pure water/fluids).
- Handling aggressive chemicals and corrosive materials in laboratories/research facilities.
- Acid and alkali transfer in general industrial manufacturing.
- Pharmaceutical production lines and biotechnology processes.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 210 m³/hr (925 US gpm) | up to 250 m³/hr (1100 US gpm) |
| Head [h] | up to 100 m (328 ft) | up to 122 m (400 ft) |
| Motor Power [P] | up to 55 kW (75 HP) | up to 90 kW (120 HP) |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 8 m (26 ft) with priming chamber* | |
| Max Working Pressure | 16 bar (232 psi) | |
| Max Specific Gravity | 1.8 - 3 | |
| Min Continuous Flow | 2.5 m³/hr (11 US gpm) | |
| Max Temperature | PVDF: 104°C (220°F) | FEP: 180°C (356°F) | PFA: 200°C (392°F) | |
| Connections | ANSI B 16.5 CLASS 150, ISO 2084, DIN 2501, BS 4504 - PN 16 | |
| Shaft Seal | Single & Double Mechanical Seals | |
| Bearings & Lubrication | Rolling Element Bearings, Oil Lubricated | |
*Note: Performance curve of particular models is available on request.

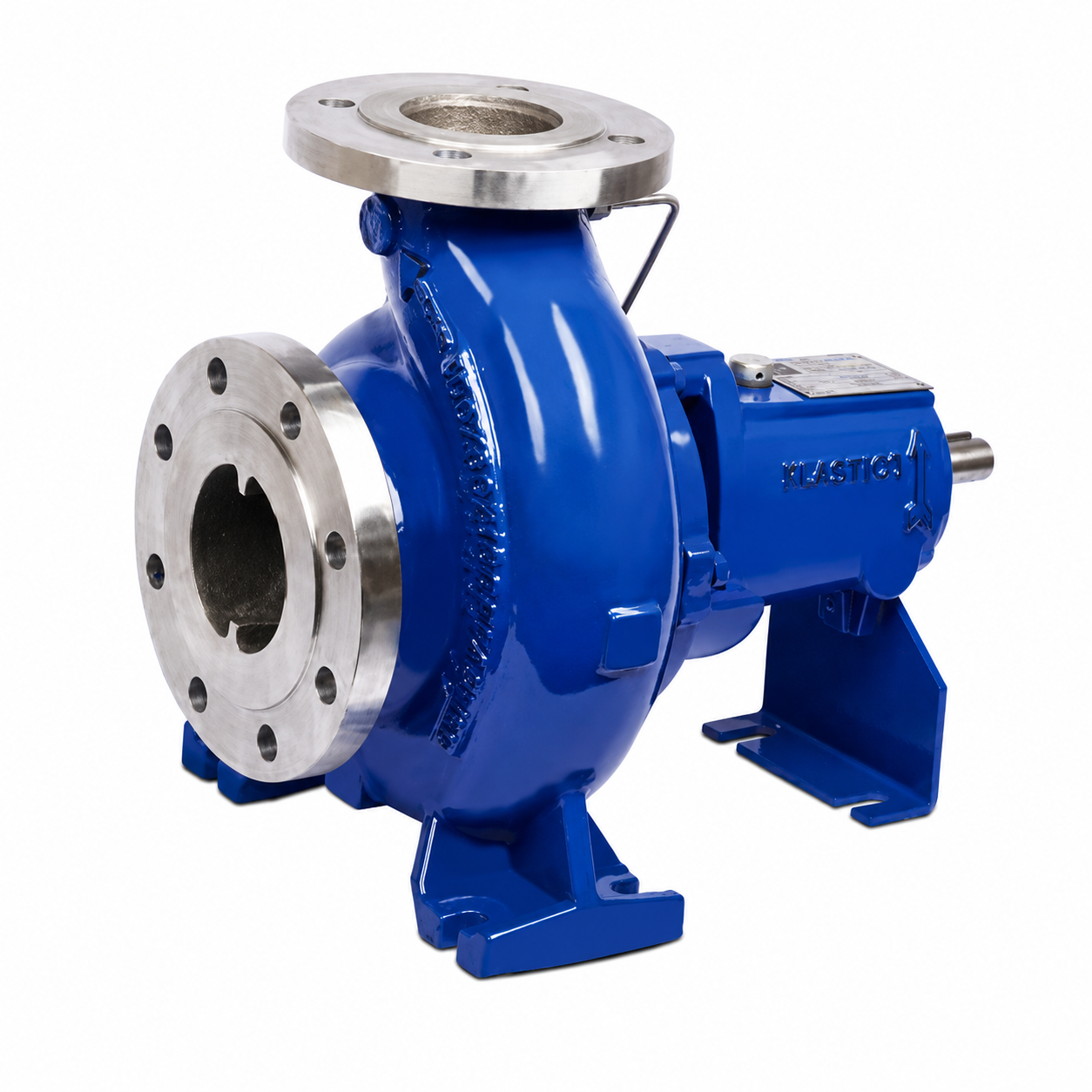

CENTRIFUGAL CLOSED IMPELLER CHEMICAL PROCESS PUMPS
Conforms to ISO 2858/5199/EN 22858. Available in Stainless Steel, Alloy-20, Hastelloy, and Duplex alloys.
Centrifugal Closed Impeller Chemical Process Pumps
Conforms to ISO 2858 / ISO 5199 / EN 22858 dimensional and design standards. High-performance design minimizing hydraulic losses.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex & Super Duplex Alloys | Cast Iron.
Key Features
- Closed Impeller Design: Minimizes hydraulic losses, ensuring smooth and precise flow rates.
- Excellent Chemical Compatibility: Suitable for a broad spectrum of corrosive chemicals.
- Rugged Construction: Long service life under tough industrial conditions.
- End Suction Configuration & Back Pull-Out design for simplified maintenance.
- Quiet and smooth operation.
Applications
- Chemical Processing & Petrochemical Industries.
- Industrial Plants & Refineries.
- Water Treatment Facilities.
- Mining and Mineral Processing.
- Food and Beverage Processing.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 750 m³/hr | up to 900 m³/hr |
| Head [H] | up to 120 m | up to 140 m |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 8 m (26 ft) with priming chamber* | |
| Max Working Pressure | 16 bar (232 psi) | |
| Min Continuous Flow | 2.5 m³/hr | |
| Operating Temperature | -60°C [-76°F] to 300°C [572°F] | |
| Connections | ANSI B 16.5 CLASS 150, ISO 2084, BS 4504 - PN 16, DN | |
| Shaft Seal | Single & Double Mechanical, Cartridge Seal, Special Seal | |
| Bearings | Rolling Element Bearings | |

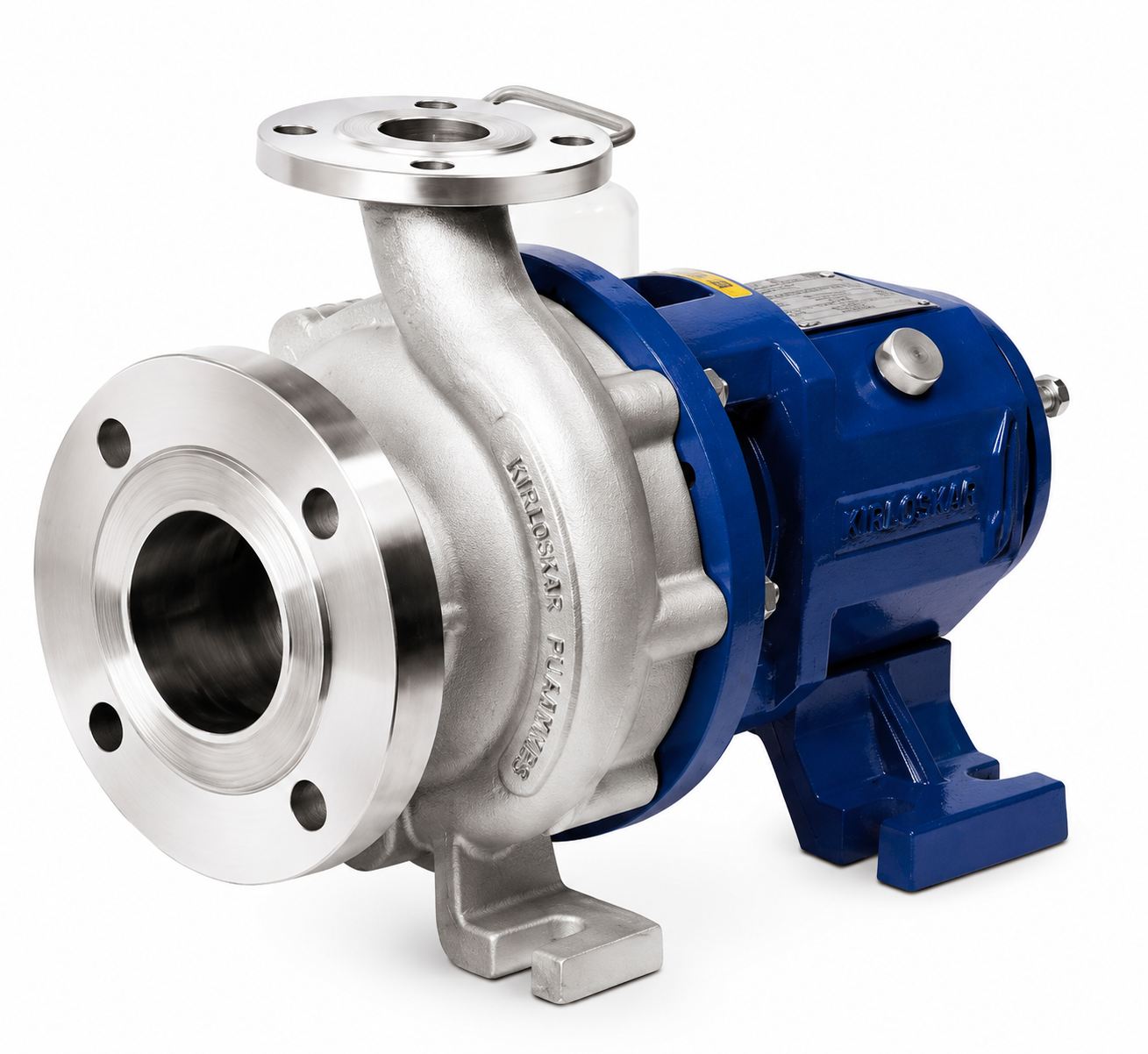

CENTRIFUGAL OPEN IMPELLER ANSI CHEMICAL PROCESS PUMP
Complies with ANSI standards for interchangeability. Open impeller design ideal for handling solids and abrasives.
Centrifugal Open Impeller ANSI Chemical Process Pump
Designed in compliance with ANSI standards for dimensional interchangeability. Semi-open/open impeller is ideal for handling abrasive fluids and solids.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex & Super Duplex Alloys.
Key Features
- Open Impeller Design: Engineered to handle slurry, solids, and abrasive materials with ease.
- ANSI Compliance: Ensures standardized dimensions and easy field interchangeability.
- Robust Construction: High durability and corrosion resistance.
- Back Pull-Out Design: Simplifies maintenance by allowing rotor assembly removal without disconnecting piping.
Applications
- Chemical and Petrochemical Processing.
- Pharmaceutical Manufacturing.
- Water and Wastewater Treatment.
- Mining and Slurry Handling.
- Pulp & Paper, and Food & Beverage processing.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 1200 m³/hr | up to 1500 m³/hr |
| Head [H] | up to 120 m | up to 160 m |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 8 m (26 ft) with priming chamber* | |
| Max Working Pressure | 16 bar (232 psi) | |
| Min Continuous Flow | 2.5 m³/hr | |
| Operating Temperature | -60°C [-76°F] to 300°C [572°F] | |
| Connections | ANSI B 16.5 CLASS 150, ISO 2084, BS 4504 - PN 16, DN | |
| Shaft Seal | Single & Double Mechanical, Cartridge Seal, Special Seal | |
| Bearings | Rolling Element Bearings | |

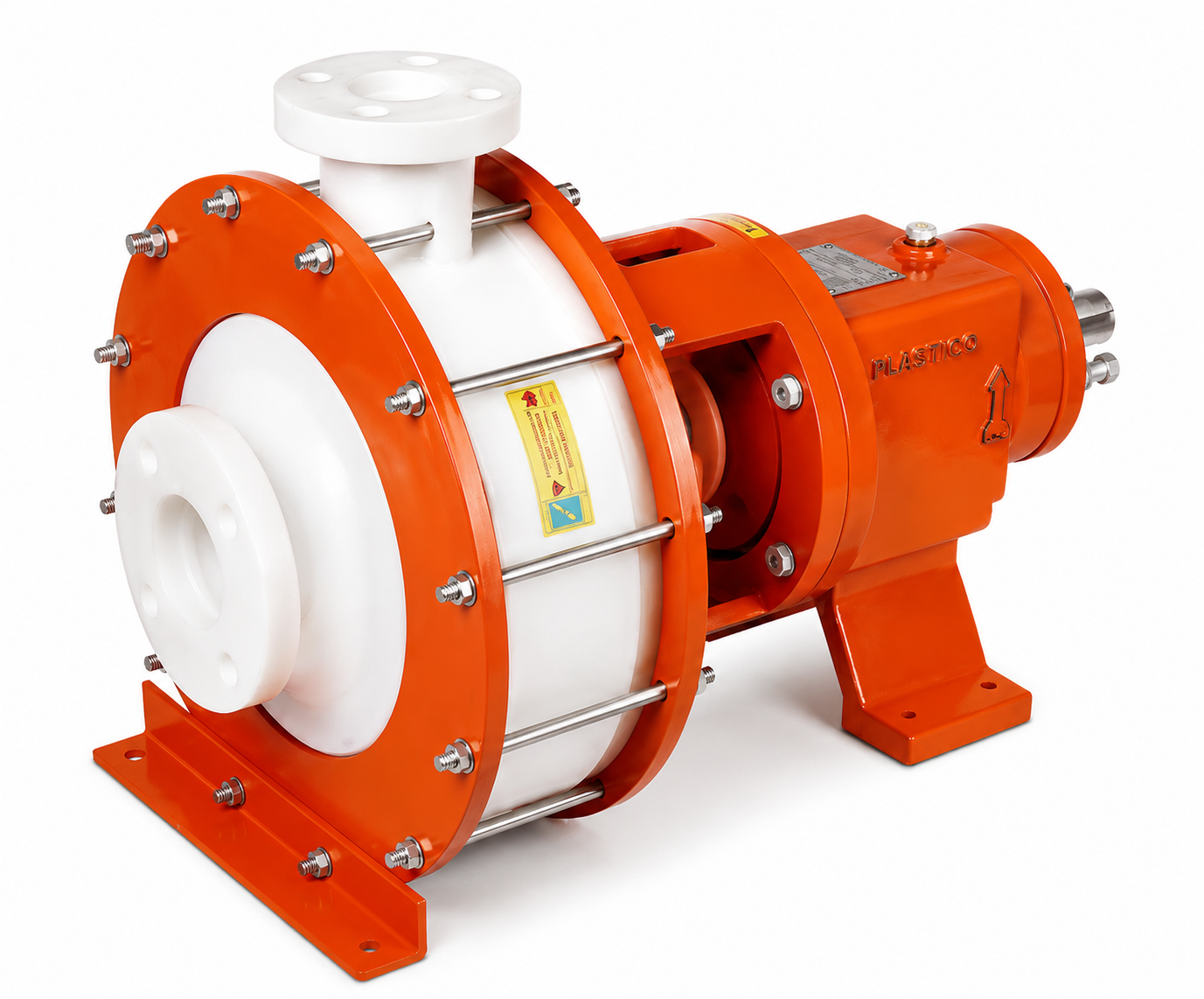

CENTRIFUGAL NON METALLIC UHMWPE PUMP
Made of Ultra-High Molecular Weight Polyethylene. Outstanding abrasion and corrosion resistance for chemical transfer.
Centrifugal Non Metallic UHMWPE Pump
Constructed from Special Grade Ultra-High Molecular Weight Polyethylene. Perfect for handling aggressive, abrasive, and corrosive fluids.
Key Features
- UHMWPE Construction: Delivers high chemical compatibility and exceptional abrasion resistance.
- High Mechanical Strength: Tough solid body design yet lightweight.
- Non-Toxic and FDA Compliant: Safely handles food and pharmaceutical media.
- Self-Lubricating properties and low coefficient of friction.
- Electrically Non-Conductive and quiet operation.
Applications
- Chemical transfer and highly corrosive wastewater treatment.
- Mining and Slurry handling (excellent wear resistance).
- Electroplating, pickling processes, and metal finishing.
- Battery manufacturing & Fume scrubbing systems.
- FDA compliant food, beverage, and pharmaceutical processes.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 210 m³/hr | up to 250 m³/hr |
| Head [H] | up to 100 m | up to 122 m |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 8 m (26 ft) with priming chamber* | |
| Max Working Pressure | 16 bar (232 psi) | |
| Min Continuous Flow | 2.5 m³/hr | |
| Max Temperature | UHMWPE: 95°C | |
| Connections | ANSI B 16.5 - CLASS 150 | |
| Shaft Seal | Single & Double Mechanical, Cartridge Seal, Special Seal | |
| Bearings | Rolling Element Bearings | |

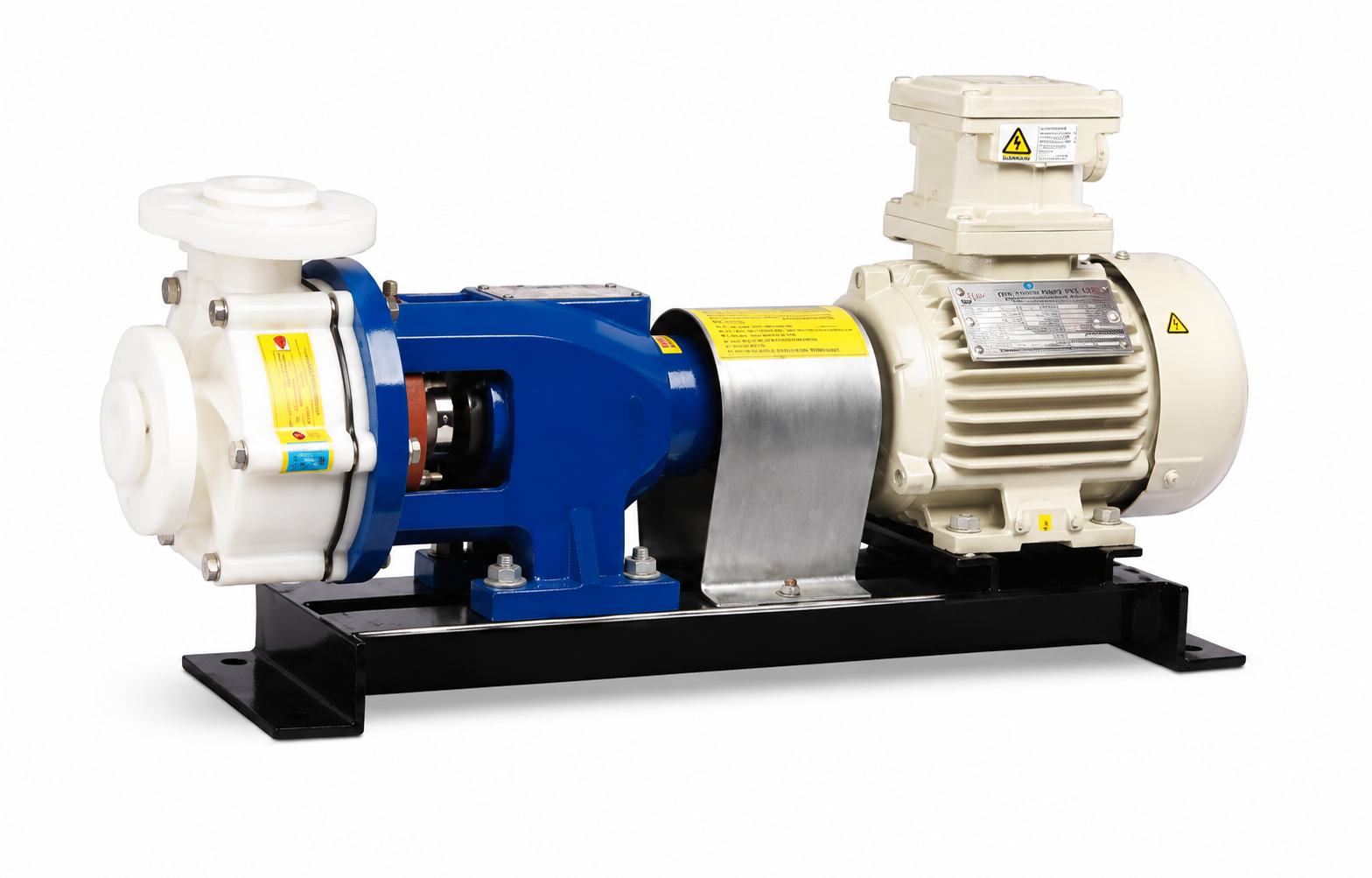

CENTRIFUGAL NON METALLIC POLYPROPYLENE PUMP
Semi-open impeller design in Polypropylene / PVDF. Best suited for process services handling corrosive, erosive liquids.
Centrifugal Non Metallic Polypropylene Pump
Constructed in Polypropylene / PVDF. The semi-open impeller design is widely recognized as the most suitable for handling liquids containing solids, stringy material, and erosive chemicals.
Key Features
- Corrosion Resistance: High resistance against a wide range of aggressive chemicals and organic solvents.
- Semi-Open Impeller: Handles liquids with solids and stringy fibers effectively.
- Lightweight Design: Contributes to ease of handling, installation, and relocation.
- Thermal Stability: Reliable performance in both hot and cold chemical transfer processes.
- Electrically Non-Conductive: Extremely safe for electrical and plating environments.
Applications
- Chemical Processing & Effluent Treatment.
- Water Treatment and Metal Plating.
- Electroplating & Pickling Processes.
- Petrochemical Industry & Fume Scrubbers.
- Pharmaceuticals, Food & Beverage processing.
- Agricultural chemical spraying.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 210 m³/hr | up to 250 m³/hr |
| Head [H] | up to 100 m | up to 122 m |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 8 m (26 ft) with priming chamber* | |
| Max Working Pressure | 16 bar (232 psi) | |
| Min Continuous Flow | 2.5 m³/hr | |
| Max Temperature | Polypropylene: 70°C | PVDF: 104°C | |
| Connections | ANSI B 16.5 - CLASS 150 | |
| Shaft Seal | Single & Double Mechanical, Cartridge Seal, Special Seal | |
| Bearings | Rolling Element Bearings | |

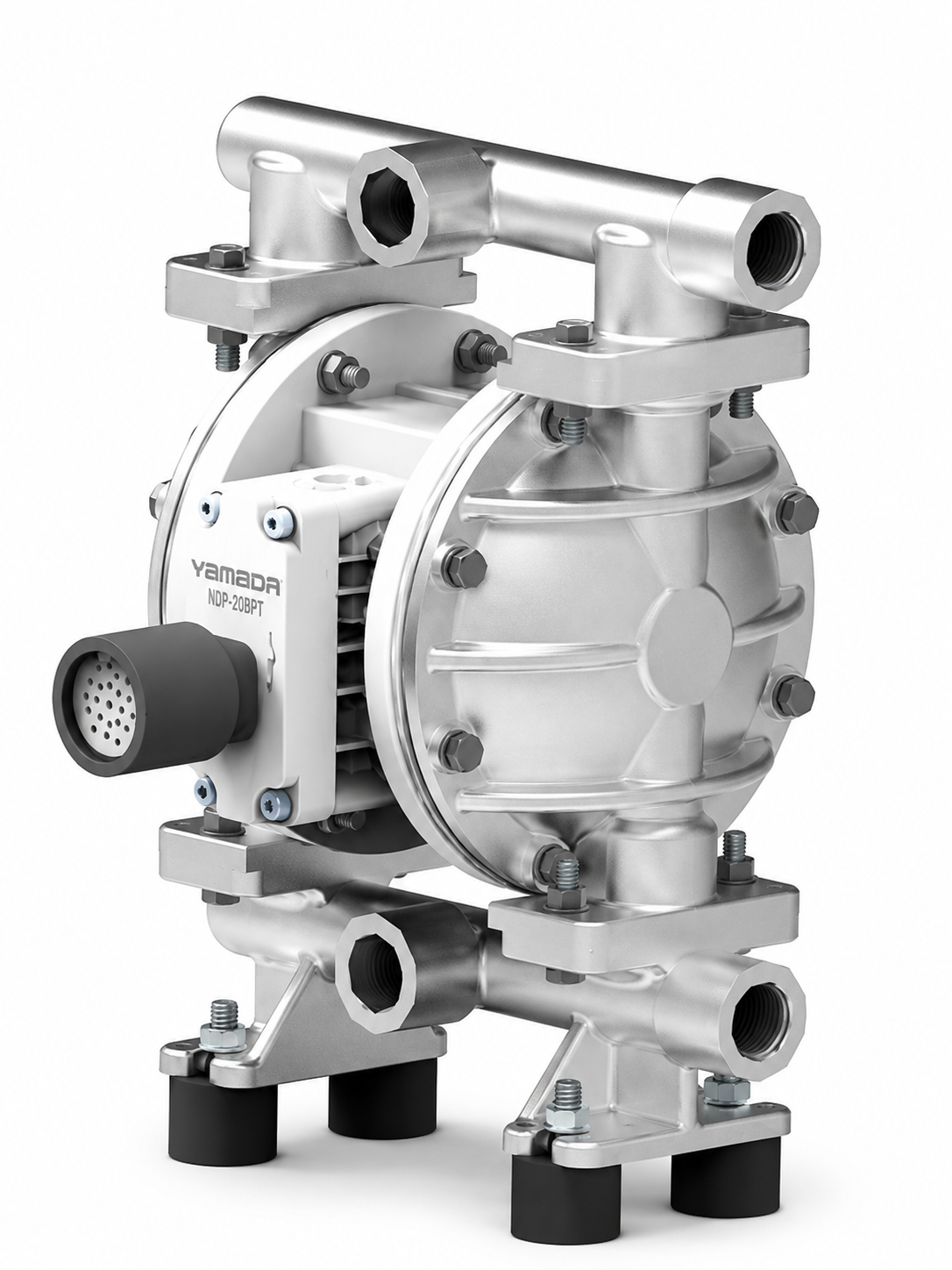

AIR OPERATED DOUBLE DIAPHRAGM PUMP (AODD)
Available in Polypropylene, PVDF, SS316, and Aluminum. Submersible, self-priming, seal-less, and run-dry capable.
Air Operated Double Diaphragm Pump (AODD)
Heavy duty self-priming, seal-less diaphragm pump. Operational in extreme environments without requiring electrical wiring.
Material Availability
- Bodies: Polypropylene | PVDF | SS316 (IC Casting) | Aluminum
- Diaphragms: PTFE | Santoprene | Neoprene
- NRV Balls: PTFE | PU | Neoprene
Key Features
- Self-priming and submersible.
- Run-dry capable: Can run dry indefinitely without heat generation or seal damage.
- Seal-less design: Eliminates potential leak paths.
- Abrasive and solid handling capability.
- Shear sensitive fluid handling.
- No VFD or electrician required: Runs entirely on compressed air.
- Field fixable with long Mean Time Between Failures (MTBF).
Available Sizes
1/2" | 1" | 1.5" | 2"

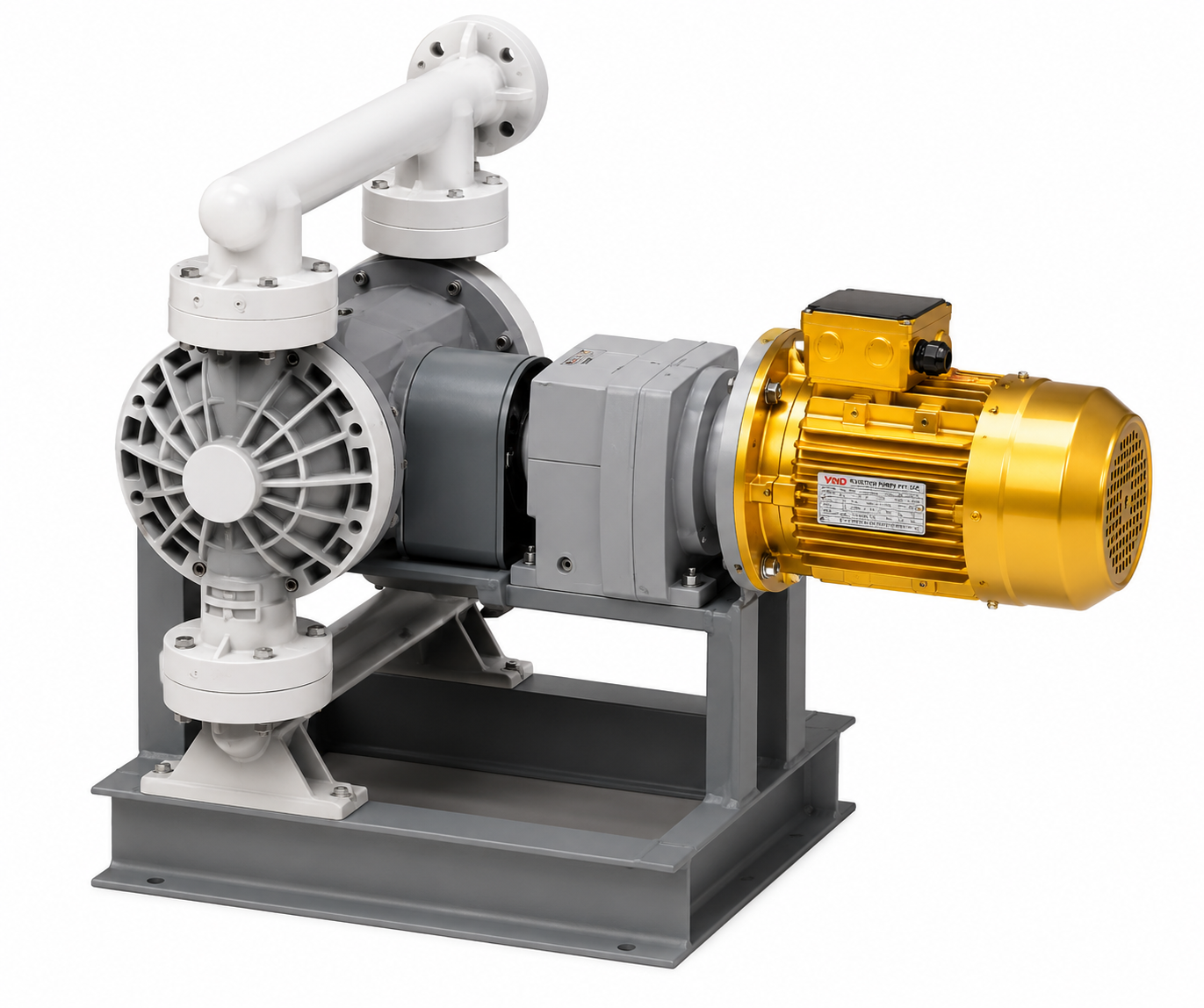

ELECTRIC OPERATED DOUBLE DIAPHRAGM PUMP (EODD)
Energy efficient electric drive. Reduces energy consumption up to 80% with a seal-less, self-priming design.
Electric Operated Double Diaphragm Pump (EODD)
Premium energy-saving double diaphragm pump driven by an electric motor. Ideal for processing plants wanting to lower energy footprints.
Material Availability
- Bodies: Polypropylene | PVDF | SS316 (IC Casting) | Aluminum
- Diaphragms: PTFE | Santoprene | Neoprene
- NRV Balls: PTFE | PU | Neoprene
Key Features
- High Efficiency: Electric drive reduces energy consumption up to 80% compared to pneumatic pumps.
- Seal-less Diaphragm design: Eliminates shaft seal leaks and failures due to dry-running.
- Self-priming.
Applications
- Chemicals: Acids, Alkalis, Alcohol, Solvents, Dyes, and Intermediates.
- Food, Beverages, and Cosmetics.
- Pulp, Paper, Adhesives, and Resins.
Technical Specifications
- Max Flow Rate: 500 Liters / Minute
- Max Head Pressure: 3 Kg/cm²
- Available Sizes: PP | PVDF | SS316 | Aluminum

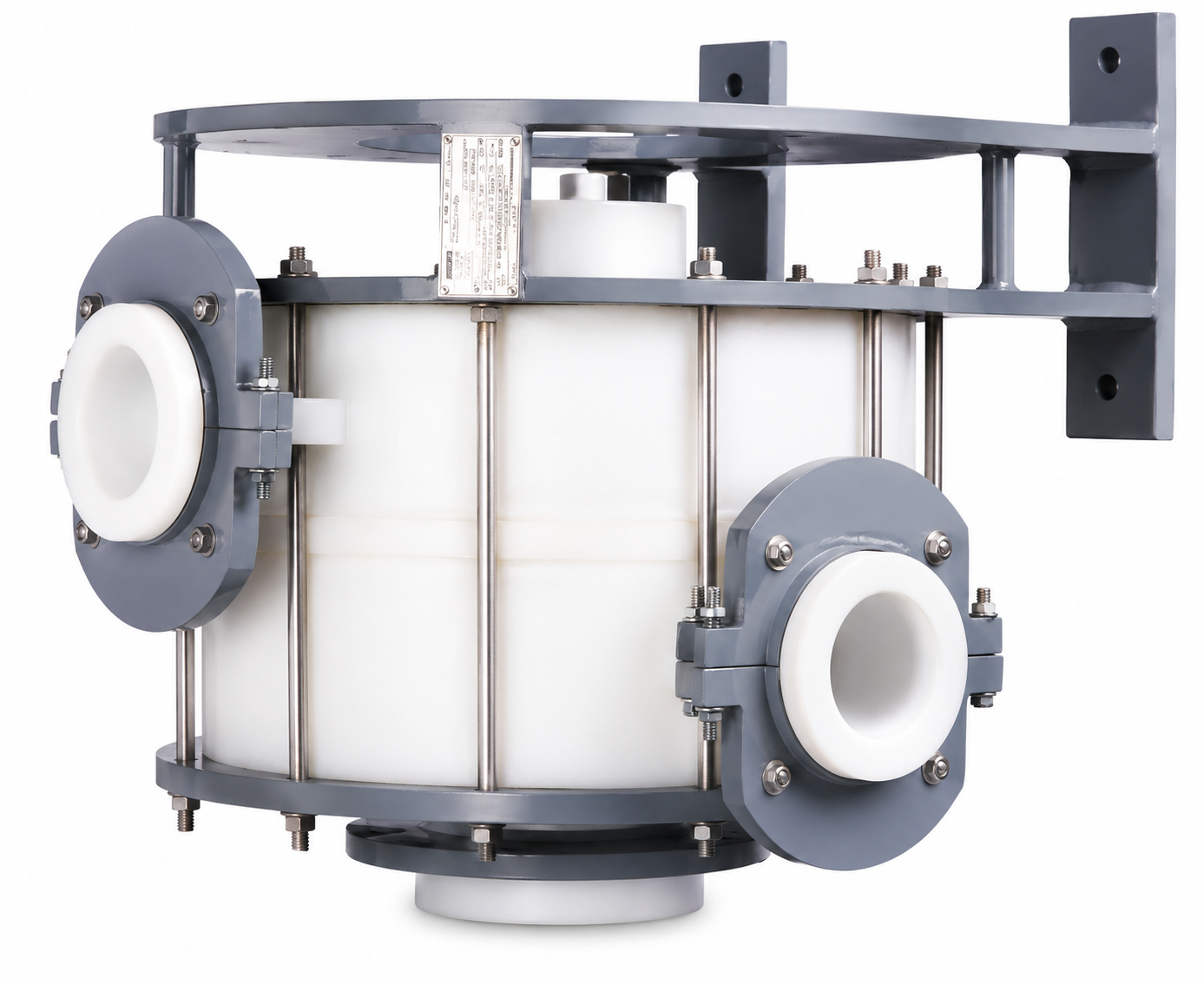

CENTRIFUGAL NON METALLIC GLANDLESS SEALLESS VERTICAL UHMWPE PUMP
Sealless and glandless vertical pump in Special Grade UHMWPE. Runs dry without damage, perfect for scrubbers.
Centrifugal Non Metallic Glandless Sealless Vertical UHMWPE Pump
Constructed in Special Grade Ultra-High Molecular Weight Polyethylene. Fully sealless and glandless vertical structure to prevent fluid leakage at the shaft entry.
Working Principle
The liquid that tries to pass where the drive shaft enters the back plate is diverted and returned as a controlled flow to the suction tank. The leakage is allowed to escape through the overflow connection of the Overflow Chamber. The auxiliary expeller impeller prevents leakage from ascending further, completely eliminating the need for dynamic shaft seals.
Key Features
- Glandless/Sealless design: Completely eliminates dynamic seals and glands.
- Dry Run Capability: Can run dry indefinitely without damages.
- Slurry Handling: Excellent performance with abrasive particles.
- No discharge restriction damage: Partially or fully closed discharge valves cause no damage.
Applications
- Scrubbers and gas washing plants.
- Filter presses and effluent transfer.
- Ejector systems.
- Phosphoric acid and caustic soda plants.
Technical Specifications
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Capacity [Q] | up to 210 m³/hr | up to 250 m³/hr |
| Head [H] | up to 100 m | up to 122 m |
| Viscosity | up to 150 mPas (cP) | |
| Suction Lift | up to 5 m with Foot Valve | |
| Max Working Pressure | 16 bar (232 psi) | |
| Max Specific Gravity | 3 | |
| Min Continuous Flow | 2.5 m³/hr | |
| Max Temperature | UHMWPE: 95°C | |
| Connections | ANSI B 16.5 - CLASS 150 | |
| Shaft Seal | Sealless / Glandless | |
| Bearings | Rolling Element Bearing | |

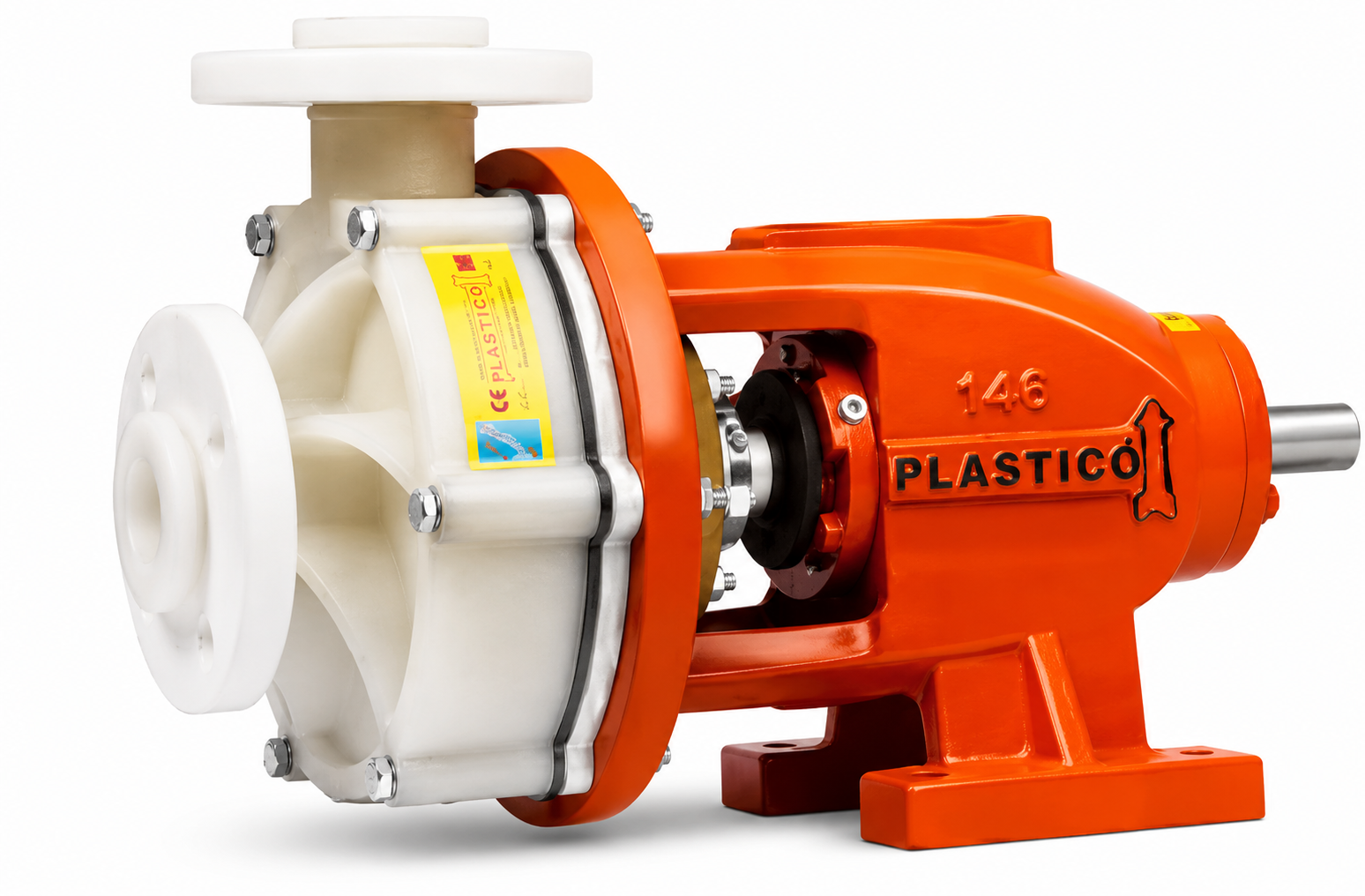

SOLID PVDF PUMP
Made of solid PVDF. Excellent chemical resistance and high mechanical strength for temperatures up to 104°C.
Solid PVDF Pump
Precision machined solid PVDF process pump for handling aggressive and corrosive chemicals in demanding temperature conditions.
Key Features
- Solid PVDF Construction: Excellent chemical resistance to a wide range of aggressive fluids.
- Precision Machining: High component tolerance for enhanced efficiency and performance.
- High Temperature Performance: Suitable for applications up to 104°C.
- Low Maintenance and reliable operations.
Technical Specifications
| Parameter | 50 Hz Value |
|---|---|
| Capacity [Q] | up to 100 m³/hr |
| Head [H] | up to 70 m |
| Motor Power [P] | up to 30 kW / 40 HP |
| Viscosity | up to 150 mPas / cP |
| Suction Lift | 8 m / 26 ft with Priming Chamber* |
| Max Working Pressure | 16 bar / 232 psi |
| Max Specific Gravity [SG] | 1.8 - 3 |
| Min Continuous Flow | 2.5 m³/hr / 11 US gpm |
| Max Temperature | PVDF: 104°C |
| Connections | ANSI B 16.5 - CLASS 150, ISO 2084, DIN 2501, BS 4504 - PN 16 |
| Shaft Seal | Single & Double Mechanical Seals |
| Bearings & Lubrication | Rolling Element Bearings, Oil Lubricated |

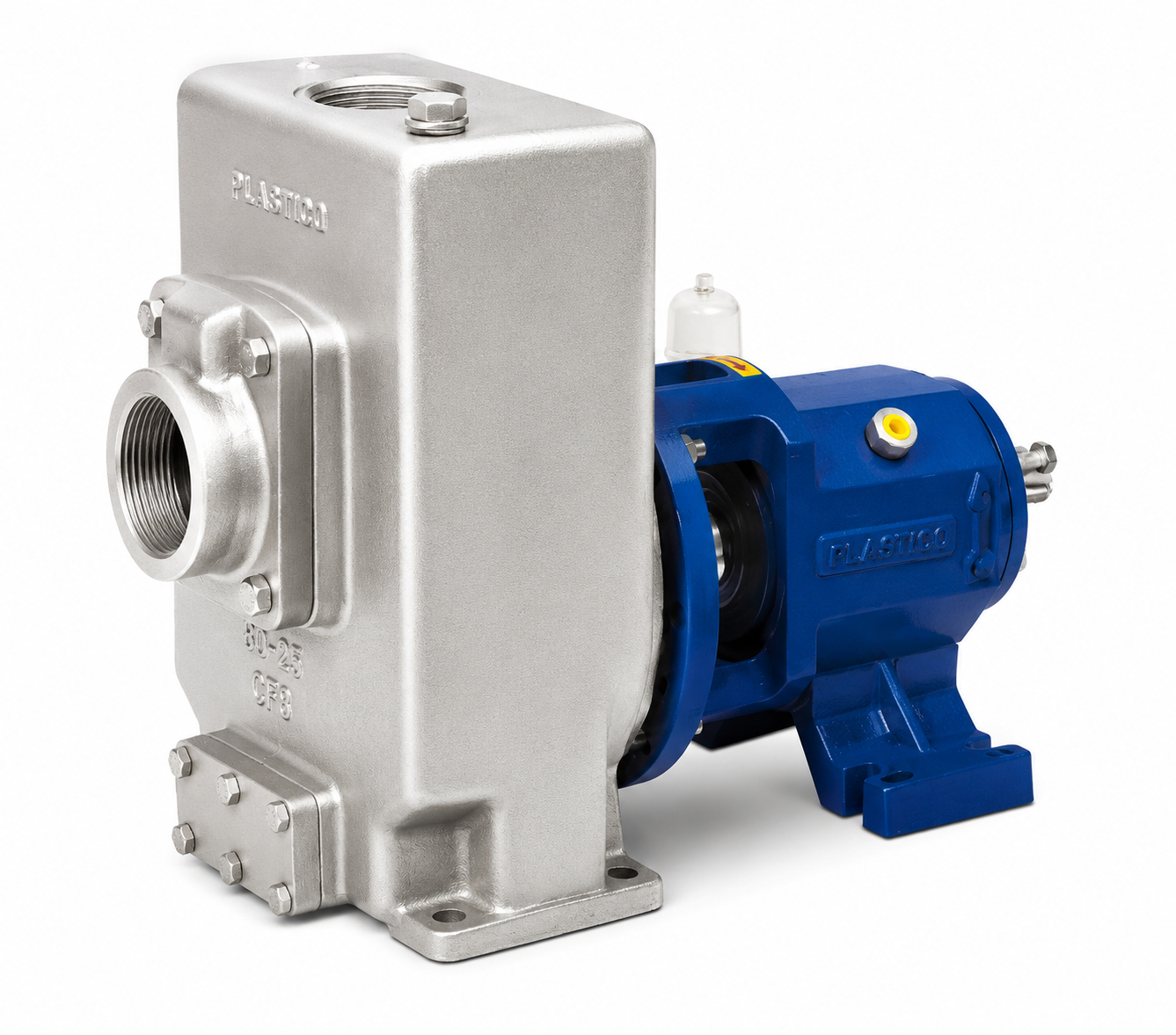

MUD PUMP
Self-priming mud/slurry pump in SS-304/316, Carbon Steel, Alloy-20, Hastelloy, and Duplex. High solids passage design.
Mud / Slurry Pump (Self-Priming)
Robust self-priming process pump with wide solids passage. Designed for mud, industrial effluent, and slurry transfer.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Performance Tables
Model 11/3 (Size: 32x32 mm, Max Solid: 7.5mm, 1 HP)
| Capacity (m³/hr) | 3 | 6 | 9 | 12 |
|---|---|---|---|---|
| Head (m) | 15.2 | 13.7 | 11.5 | 9.9 |
| Power (kW) | 0.43 | 0.55 | 0.63 | 0.68 |
Model 11/4 (Size: 40x40 mm, Max Solid: 12mm, 1.5 HP)
| Capacity (m³/hr) | 3 | 6 | 9 | 12 | 15 | 18 |
|---|---|---|---|---|---|---|
| Head (m) | 16.3 | 15.2 | 14.2 | 13 | 11.6 | 10 |
| Power (kW) | 0.68 | 0.71 | 0.75 | 0.79 | 0.84 | 0.9 |
Model 12B/5 (Size: 50x50 mm, Max Solid: 10mm, 2 HP)
Capacity up to 24 m³/hr, Head up to 20 m.
Model 12/5 (Size: 50x50 mm, Max Solid: 13mm, 3 HP)
Capacity up to 30 m³/hr, Head up to 19.8 m.
Model 12/6 (Size: 65x65 mm, Max Solid: 20mm, 5 HP)
Capacity up to 60 m³/hr, Head up to 19.2 m.
Model 14/8 (Size: 80x80 mm, Max Solid: 24mm, 7.5 HP)
Capacity up to 75 m³/hr, Head up to 22.5 m.
Model 16/3 (Size: 32x32 mm, Max Solid: 6mm, 3 HP)
Capacity up to 12 m³/hr, Head up to 32 m.
Model 16/6 (Size: 65x65 mm, Max Solid: 12mm, 7.5 HP)
Capacity up to 45 m³/hr, Head up to 35 m.

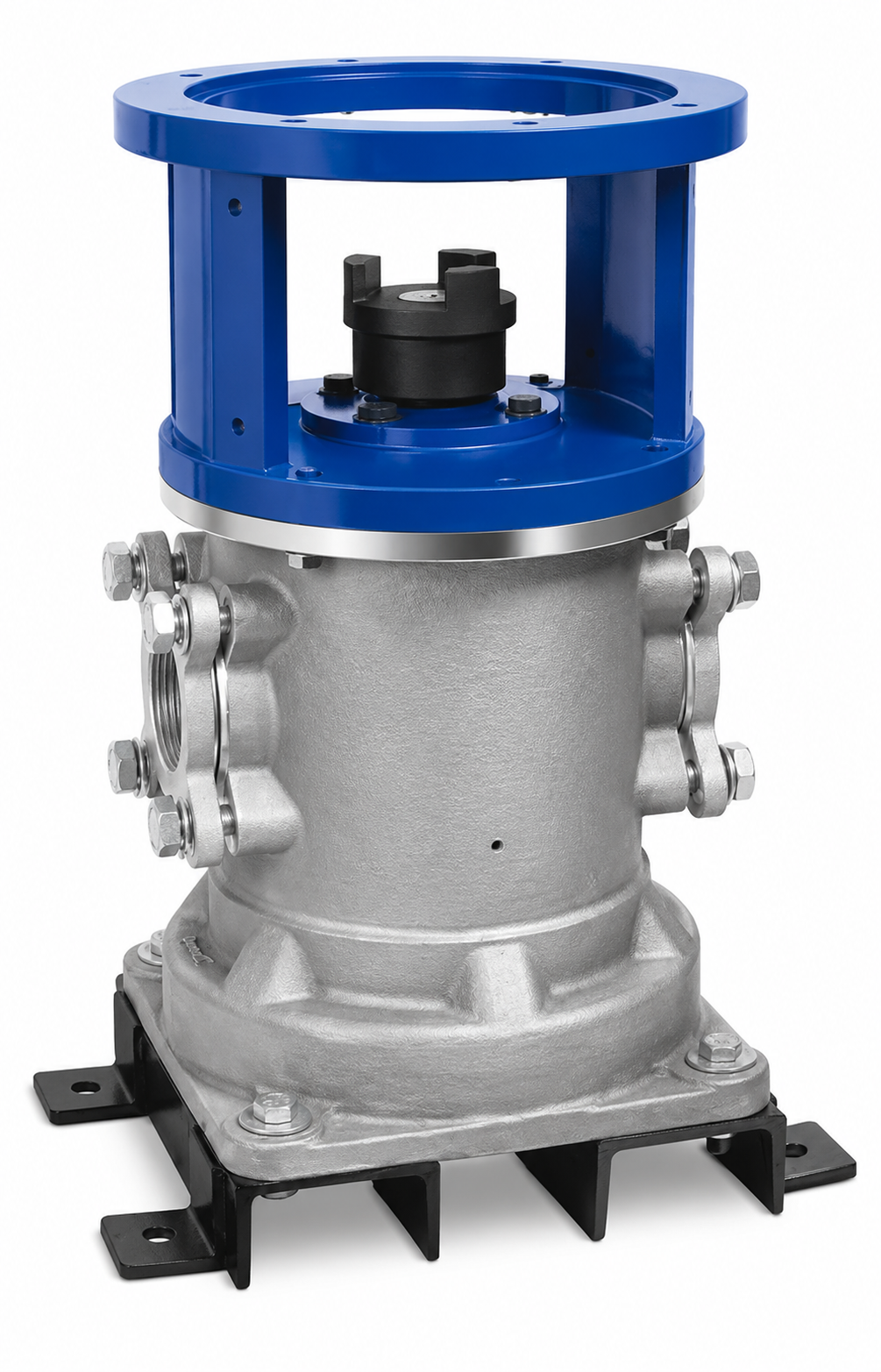

VERTICAL IN LINE SELF PRIMING PUMP
Floated impeller design for seamless transfer of clear fluids/solvents from barrels and tanks. Self-priming without foot valves.
Vertical In Line Self Priming Pump
Highly stable vertical inline pump with floating impeller design to reduce axial thrust. Outstanding for transferring solvents from barrels and storage tanks.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Key Features
- Impeller designed specifically for seamless transfer of clear fluids.
- Floating impeller arrangement: Delivers enhanced stability and minimizes axial thrust.
- Suction Lift: Capable of self-priming with lifts between 3m to 5m.
- No Foot Valve Required: Reduces friction loss and simplifies piping layout.
- Mounting versatility: Can be mounted directly on tanks or off-tank.
- Low NPSH Requirement: Operates efficiently under lower inlet pressure heads.
- Mechanical seal: Cooled and flushed directly by the pumped process fluid.
- Solvent Handling: Expertly configured for barrel and tank fluid extraction.
- Leak Detection: Seal leakage is easily inspectable from the priming chamber hole.
Technical Specifications
- Operating Frequency: 50 Hz Operation
- Flow Rates (Capacity): 1 – 40 m³/hr
- Delivery Heads: Up to 45 m
Note: Performance curve of particular models is available on request.

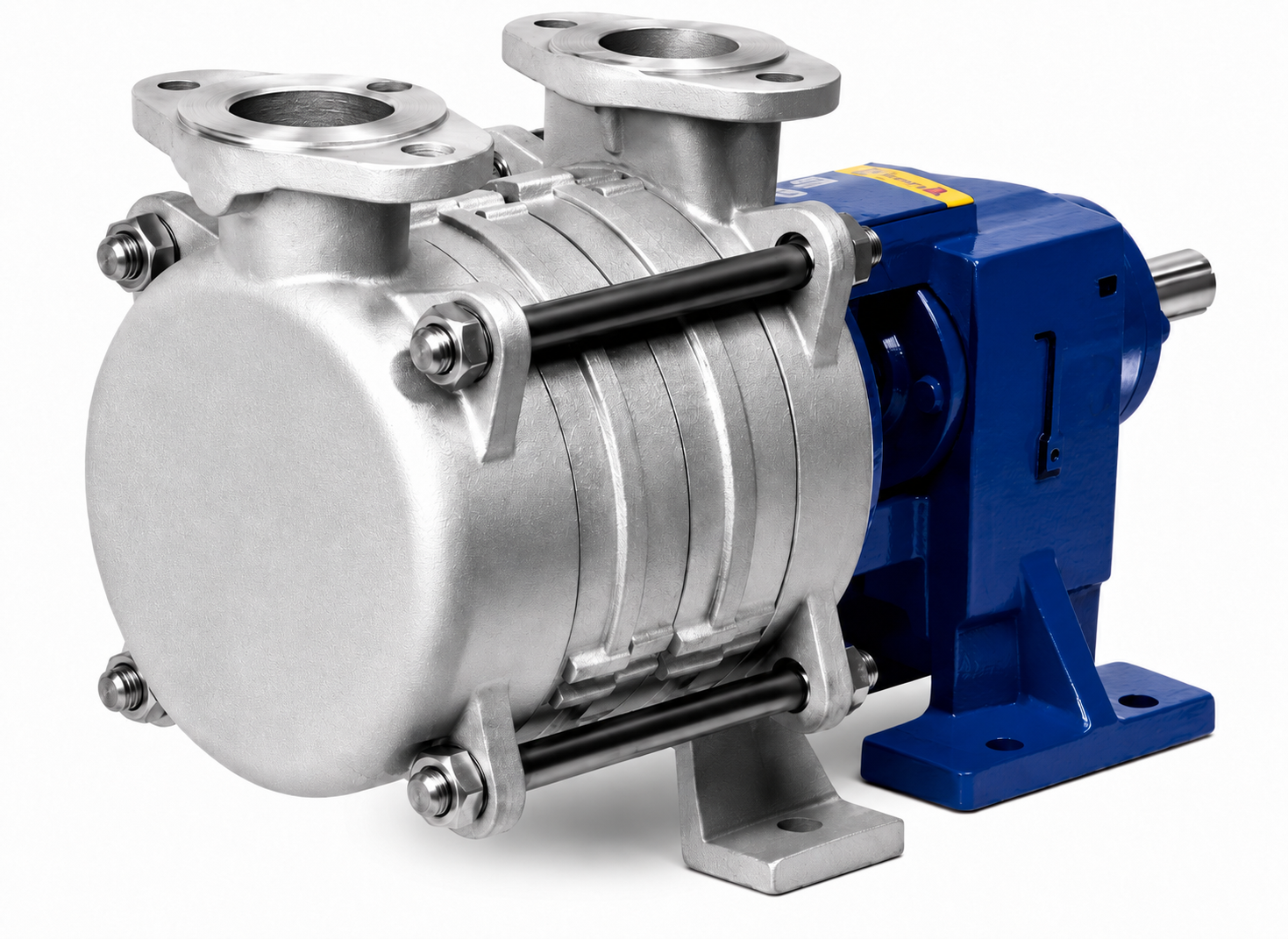

HORIZONTAL SELF PRIMING PUMP
Fully open turbine type impeller for clear fluids and solvent transfer. Mobile trolley configuration available.
Horizontal Self Priming Pump
Self-priming horizontal process pump featuring a fully open turbine impeller. Ideal for mobile transfers and tank farm chemical pumping.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Key Features
- Fully Open Turbine Impeller: Optimized for clear fluid and solvent transfer.
- Floating Impeller arrangement for axial load balancing.
- Multiple seal configurations: Single & double mechanical seal options.
- Suction Lift: Reliable priming up to 3m to 5m depth without foot valves.
- Compact Footprint: Requires minimal installation space on site.
- Low Overhang Shaft: Rigorous layout minimizing shaft deflection at seal faces.
- Integrated Cooling: Process fluid flushes and cools the mechanical seal.
- Mobile Option: Available with a mounting trolley for portable field applications.
Technical Specifications
- Operating Frequency: 50 Hz Operation
- Flow Rates (Capacity): 1 – 20 m³/hr
- Delivery Heads: Up to 120 m
- Operating Temperatures: -60°C to +150°C
Note: Performance curve of particular models is available on request.

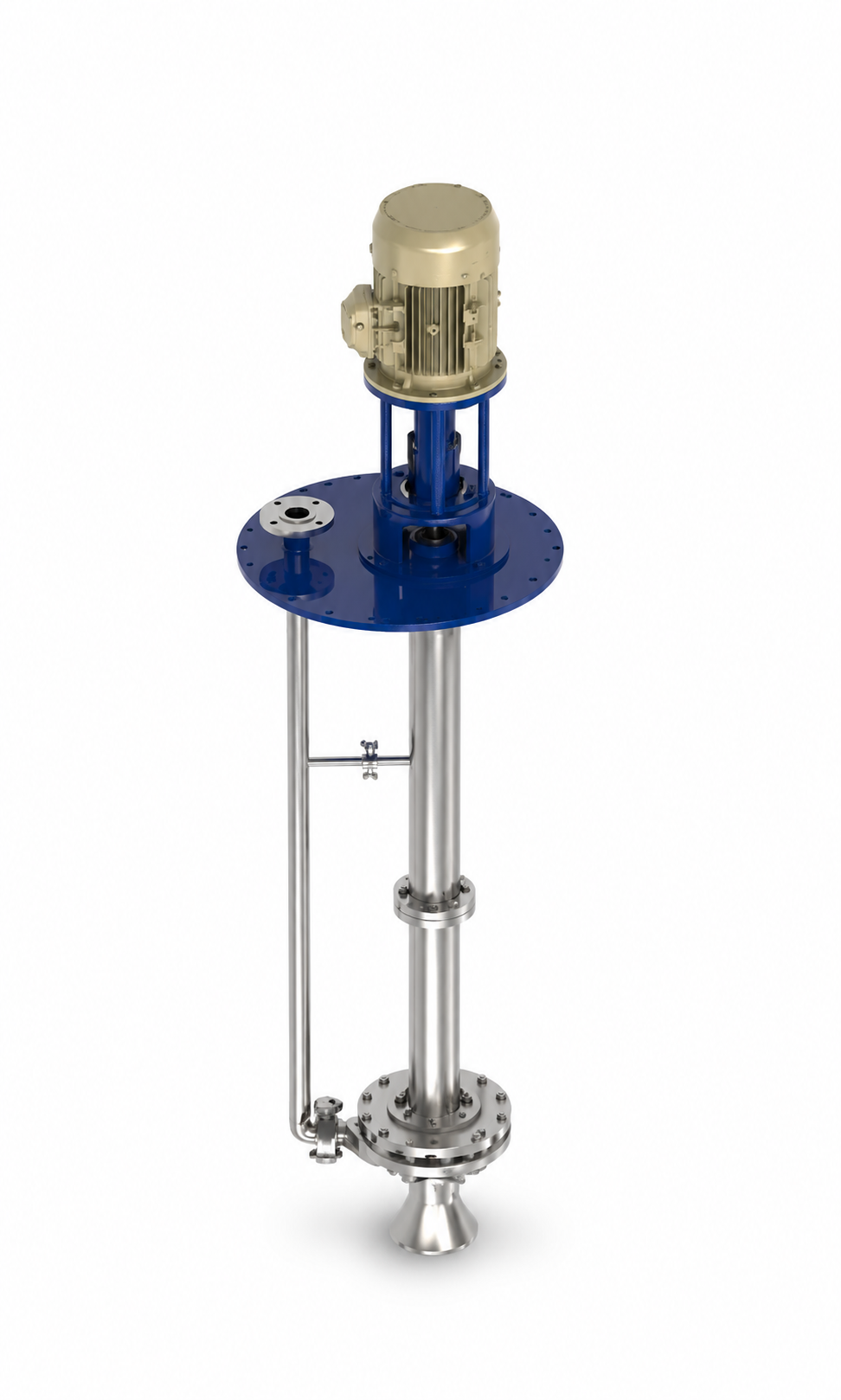

VERTICAL LONG SHAFT SUMP PUMP
Designed to meet custom pit depths and support arrangements. Reliable lubrication and shaft protection.
Vertical Long Shaft Sump Pump
Heavy duty vertical sump pump designed to meet specific depth lengths and operational criteria. Built for wet pit chemical processing.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Key Features
- Customized Lengths: Shaft and column engineered to meet specific tank/pit dimensions.
- Adaptable Base Plate: Tailored to align with existing mounting structures.
- Standardized & Modular: Simplifies component configuration and parts replacement.
- Flexible Sealing: Sealed by oil seal, mechanical seal, or stuffing box packing.
- Robust Column Pipe: Protects the long drive shaft and houses intermediate guide bearings.
- Suction strainers included for solid exclusion; self-priming configuration.
- Impeller options: Close or Semi-open impeller configurations available.
Applications
- Chemical Processing & Petrochemical Industries.
- Water, Waste, & Effluent Treatment plants.
- Metal Plating, Electroplating, and Acid Pickling.
- Fume scrubbing systems.
- Food, Beverage, and Pharmaceutical manufacturing.

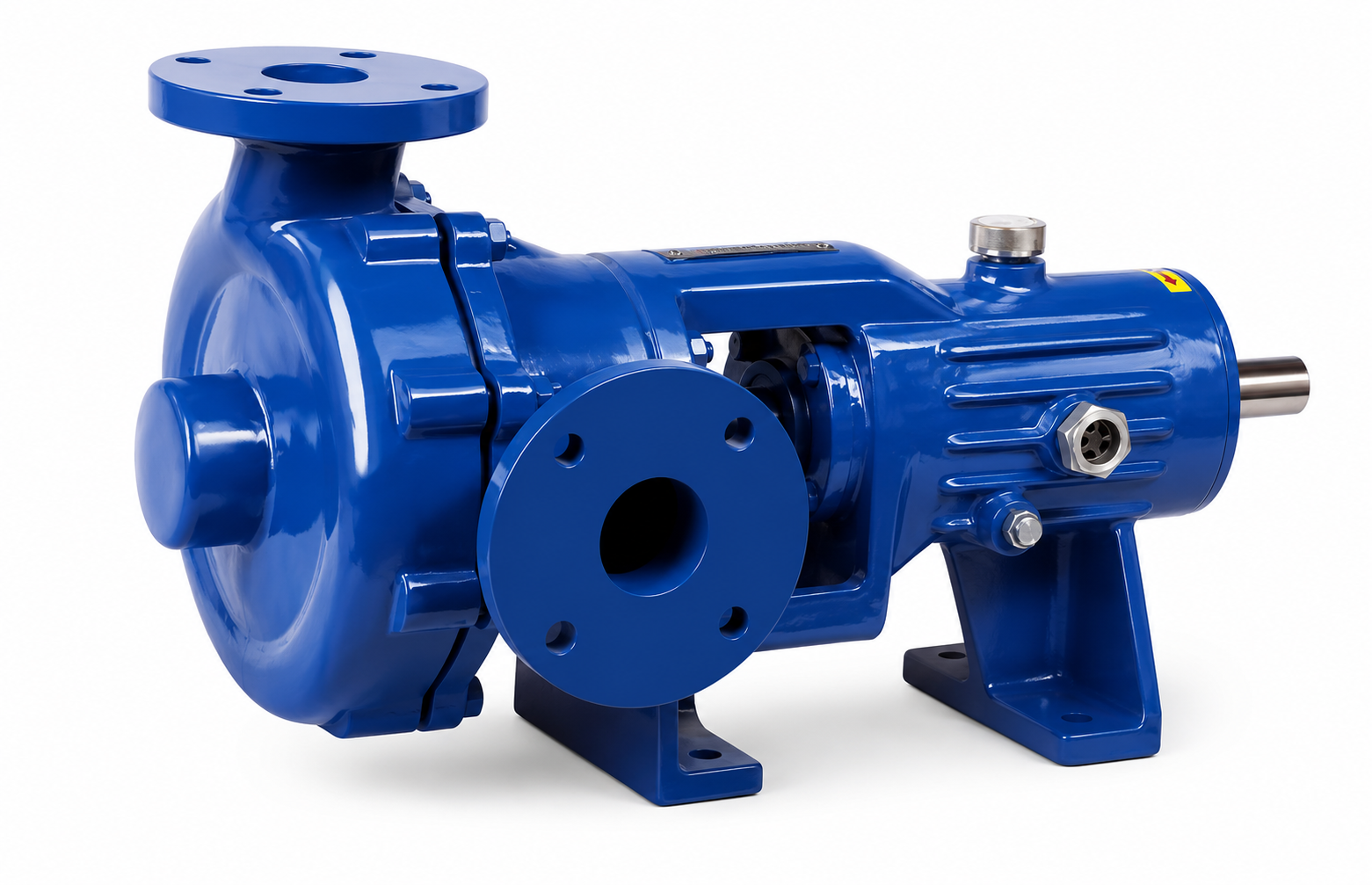

FILTER PRESS SLURRY PUMP
Single stage semi-open impeller designed specifically for filter press feeding. Reduces dynamic gland leakage.
Filter Press Slurry Pump (Single Stage)
High-efficiency semi-open impeller pump built specifically for filter press feeding, slurry transfer, and wastewater plants.
Material Availability
WCB (Cast Steel) | CF8 (SS-304) | CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Key Features
- Special Filter Press Design: Built to handle backpressure and reduce gland packing leaks.
- Heavy duty shaft, sleeves, and grease/oil lubricated rolling bearings.
- Wear Resistance: Longer component lifespan via replaceable wear parts.
- Operation flexibility: Suitable for V-belt drive or direct coupling with motor.
- Requires positive (+V) suction head.
Applications
- ETP, STP, and industrial wastewater treatment plants.
- Evaporators and scrubber circulation.
- Slurry and sludge transfer.
- Dyes, intermediates, and steel rolling mills.
- Pulp & paper, sugar, salt, and starch processing.
- Zinc & copper refining plants, ceramics, and general industrial services.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity [Q] | Up to 40 m³/hr |
| Head [H] | Up to 120 m |
| Size Range | 25 mm to 80 mm |
| Operational Speed | Up to 3000 R.P.M. |
| Pressure Limit | Up to 12 kg/cm² |

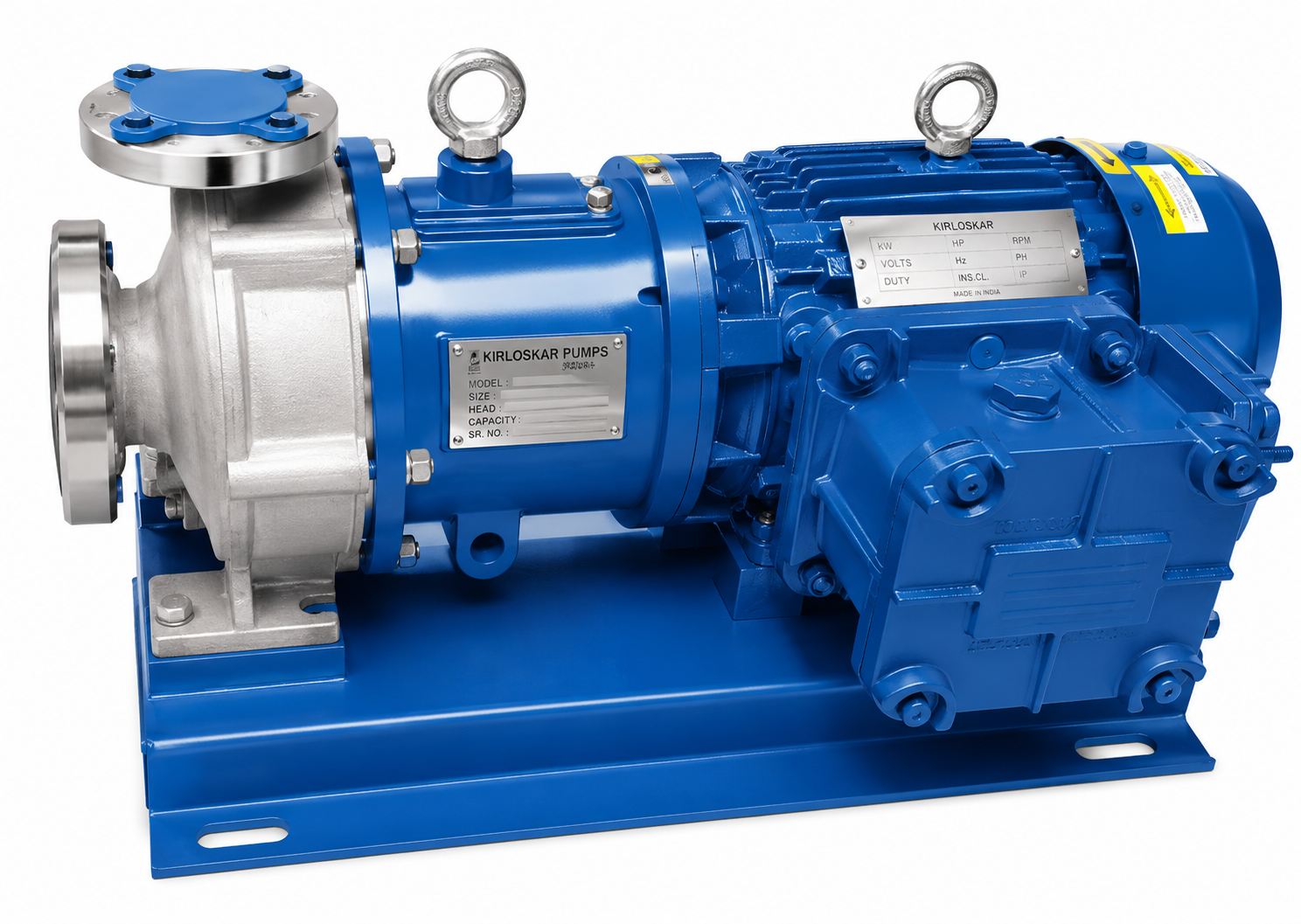

SS MAGNETIC DRIVE CHEMICAL PROCESS CLOSE COUPLED PUMP
DIN EN ISO 2858 and DIN EN ISO 15783 compliant. Sealless leakproof design with permanent magnet drive.
SS Magnetic Drive Chemical Process Close Coupled Pump
Close-coupled horizontal centrifugal pump with permanent magnetic coupling. Hermetically sealed separation from the atmosphere eliminates dynamic seals.
Material Availability
CF8M (SS-316) | CF3 (SS-304L) | CF3M (SS-316L) | CN7M (Alloy-20) | CW12MW (Hastelloy-C) | N12MV (Hastelloy-B) | Duplex and Super Duplex Alloys.
Key Features
- Permanent Magnet Drive: Sealless configuration provides 100% leakproof fluid containment.
- ISO Compliance: Conforms to DIN EN ISO 2858 (hydraulic performance) and DIN EN ISO 15783.
- Maintenance-Free: Isolation shell separates liquid chamber from the outer atmosphere.
- Slipless power transfer.
- Close-coupled Block Design: Compact footprint, eliminating shaft alignment issues.
- Journal Bearings: Product-lubricated bearings made of Silicon Carbide (SSiC) or custom alloys.
- Axial Balance: Impeller is hydraulically balanced to minimize bearing loads.
Applications
- Corrosive chemical processing.
- Petrochemical and refining plants.
- Pharmaceutical chemical dosing.
- Ultra-pure water and general water treatment.
- Pulp & paper, mining, and food/beverage industries.

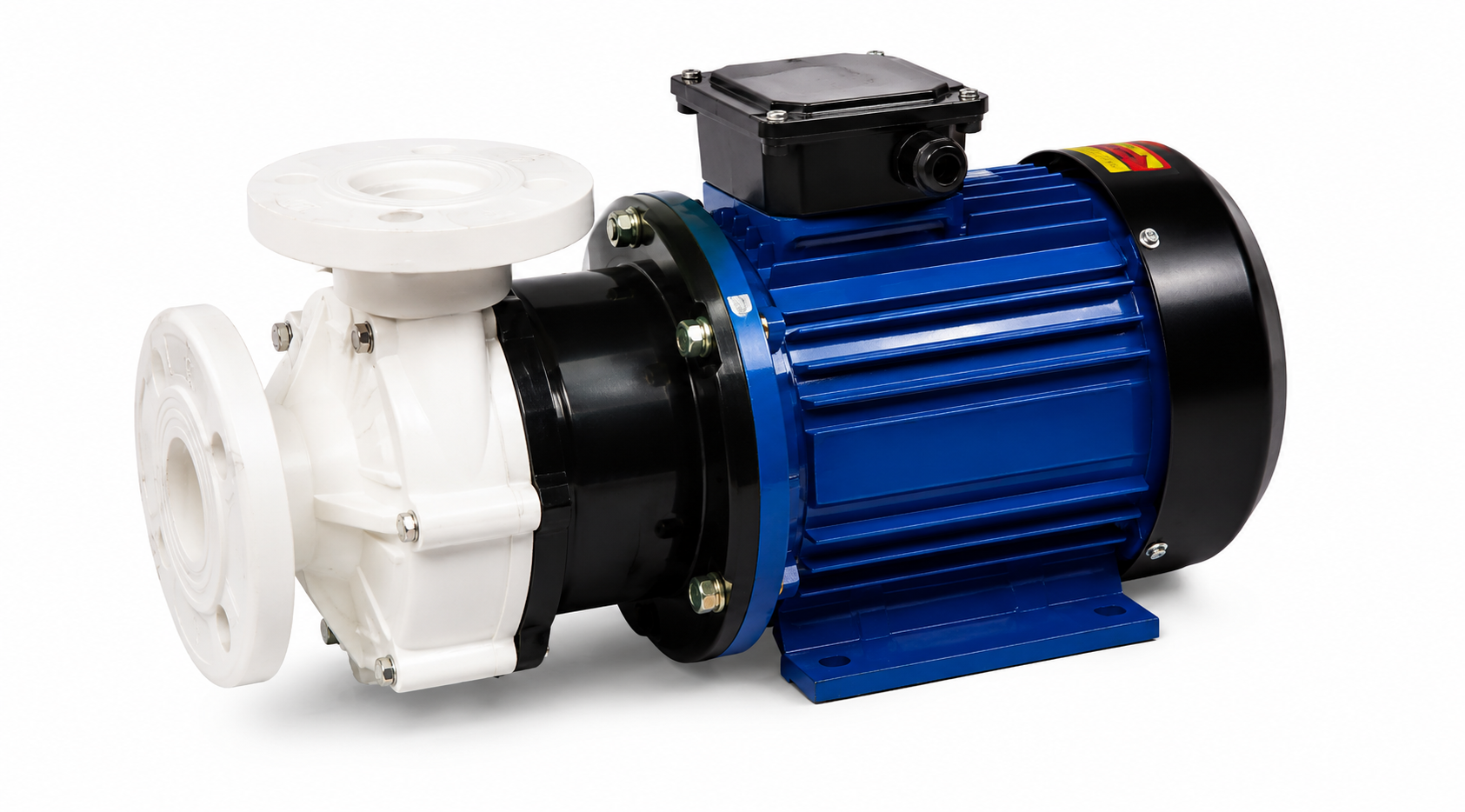

POLYPROPYLENE MAGNETIC PUMP
Sealless magnetic drive process pump in Polypropylene. Rated up to 300 LPM flow and 22 meters head.
Polypropylene Magnetic Pump
Compact, sealless PP magnetic drive pump for chemical transfer, laboratory testing, and industrial plating tanks. 100% leakproof safety.
Key Features
- Sealless Design: Magnetically coupled impeller eliminates leak-prone dynamic shaft seals.
- Polypropylene Body: Superior resistance to aggressive acids, plating chemicals, and solvents.
- Quiet and efficient operation.
Technical Specifications (Speed: 2800 RPM)
| Model | Port Size | Max Flow (LPM) | Max Head (m) | Motor HP | Full Load | Phase | Sp.Gr. |
|---|---|---|---|---|---|---|---|
| PPMP-15 | 14 mm | 15 | 2.5 | 0.10 HP | 0.15 A | Single | 1.1 |
| PPMP-30 | 18 mm | 30 | 4.0 | 0.16 HP | 0.20 A | Single | 1.1 |
| PPMP-50 | 20 mm | 50 | 5.0 | 0.25 HP | 0.50 A | Single | 1.2 |
| PPMP-85 | 26 mm | 85 | 9.0 | 0.50 HP | 1.00 A | Single/3 | 1.2 |
| PPMP-125 | 26 mm | 125 | 12.0 | 0.75 HP | 1.25 A | Single/3 | 1.3 |
| PPMP-170 | 1" BSP | 170 | 14.0 | 1.0 HP | 1.70 A | Three | 1.3 |
| PPMP-300 | 1-1/2" | 300 | 22.0 | 1.5 HP | 2.40 A | Three | 1.4 |

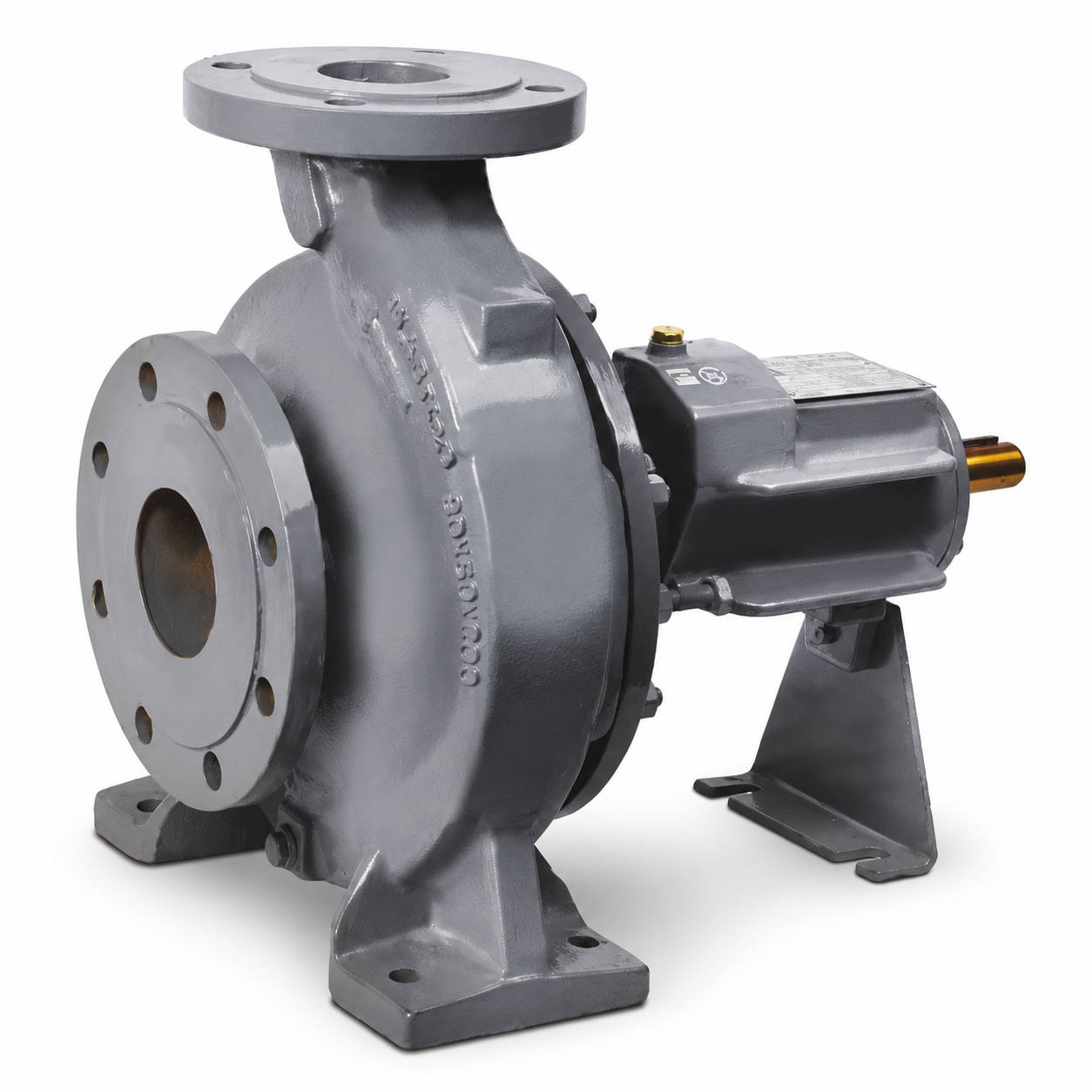

THERMIC FLUID HOT OIL PUMP
Air-cooled design with convective fins. Excellent for high-temperature applications up to +350°C (oil/thermic fluids).
Thermic Fluid Hot Oil Pump
Heavy duty air-cooled process pump for high temperature transfers. Features cooling fins to achieve natural thermal convection without separate cooling lines.
Key Features
- Air-Cooled Design: Specially engineered natural convection fins dissipate heat, eliminating cooling system requirements.
- Thrust Balancing: Back radial blades on the impeller drop pressure on the seal and balance axial thrust load.
- Safety Backup Seal: Thermal-resistant soft packing seal behind the impeller. Slows down leaks and prevents sudden system failure if the mechanical seal is damaged.
- Discharge configuration: Top radial discharge flange with low maintenance structure.
Applications
- Construction & Plastic industries.
- Rubber, Paper, and Pulp mills.
- Edible oils and chemical processing.
- Petrochemical & Textile industries.
- Food, Sugar, and Pharmaceutical processing.
Technical Specifications
| Parameter | Range Details |
|---|---|
| Capacity [Q] | Up to 300 m³/hr |
| Head | Up to 150 MLC (Meters Liquid Column) |
| Pump Size (DN) | 25 mm to 300 mm |
| Speed [N] | 1450 / 2900 rpm (50 Hz) | 3500 rpm (60 Hz) |
| Max Temperature | Up to +350°C Max |
| Motor Insulation | Standard heat-resistant, grease-lubricated bearings |
