Gasketing Solutions

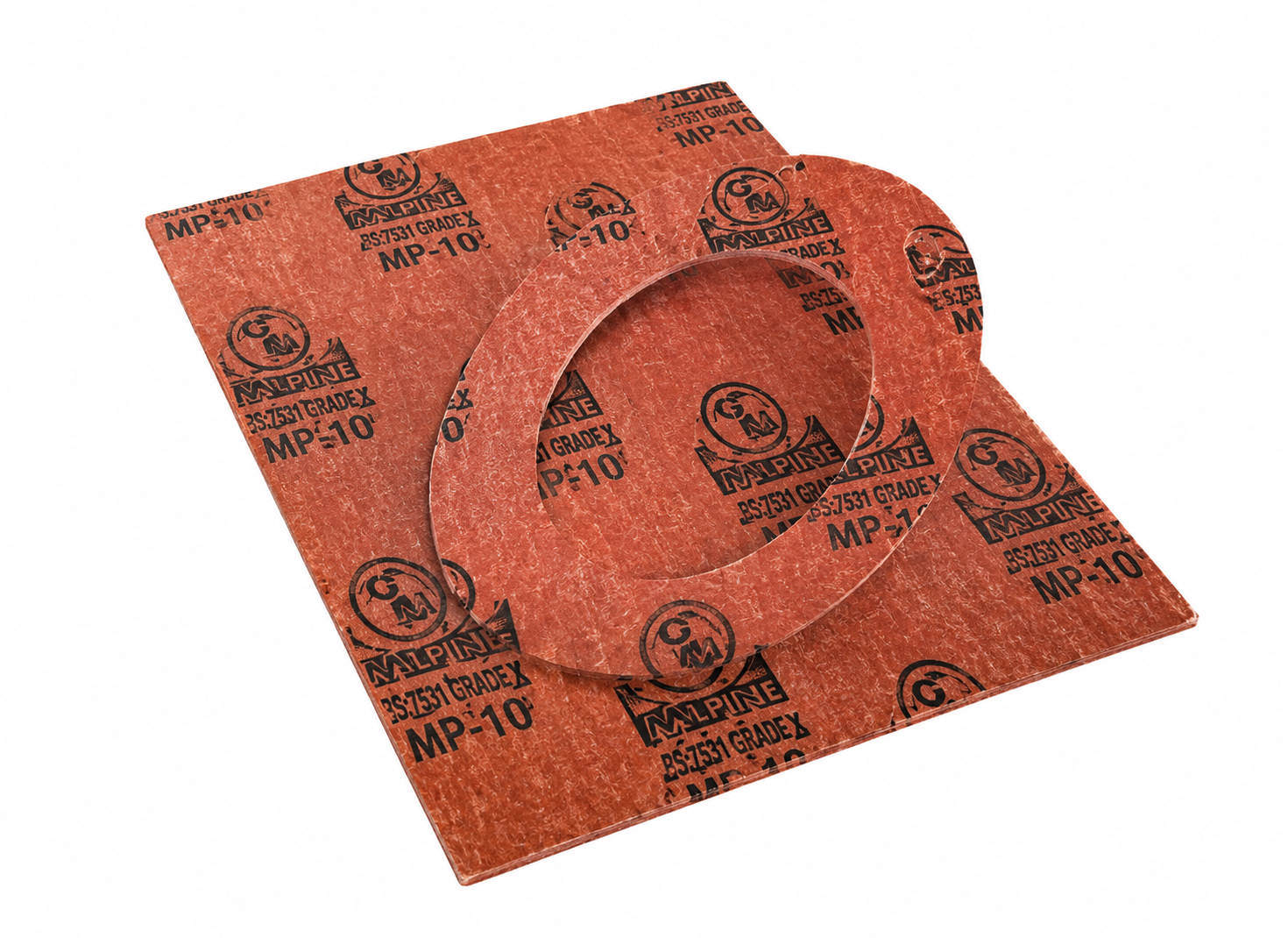

CHAMPION AF110 Water

Composition: Organic cellulose fibre bonded with elastomeric binders.

Suitability: General-purpose, medium-duty gasket applications for liquids and gases under low pressure and temperature.

Supply Form: Sheets or pre-cut gaskets.

Specifications

• Max Operating Temperature: 250°C (Short term peak), 180°C (Continuous)
• Max Operating Pressure: 40 bar
• Common Applications: Water pipes, utility lines, non-aggressive liquids and gas lines under low pressure.

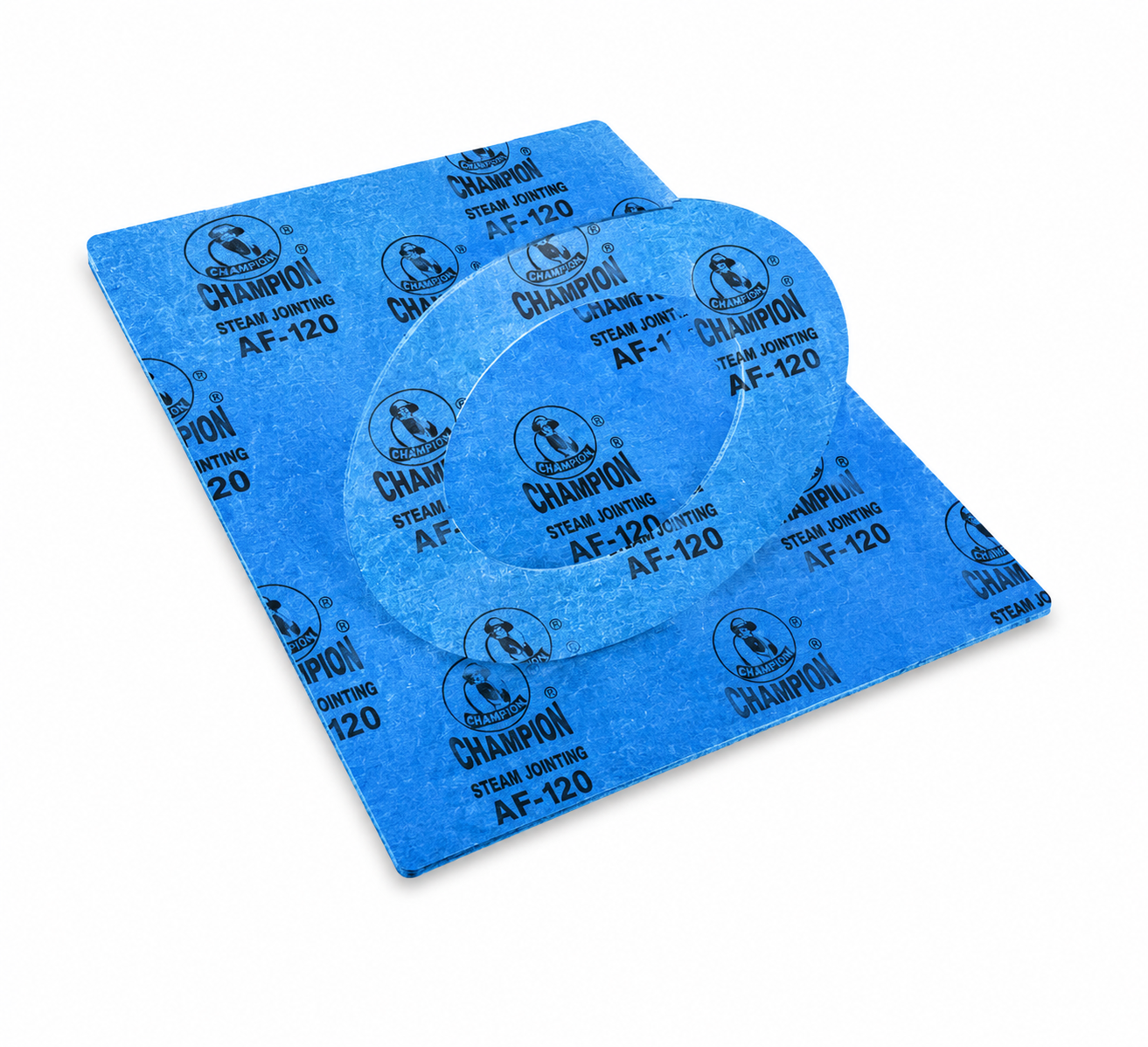

CHAMPION AF120 Steam

Composition: Aramid fibre bonded with elastomeric binders.

Suitability: General-purpose asbestos-free jointing sheet suitable for industrial gasket use, especially for water, gases, medium-pressure steam, dilute acids, alkalis, solvents, and refrigerants.

Specifications

• Max Operating Temperature: 350°C (Short term peak), 250°C (Continuous)
• Max Operating Pressure: 80 bar
• Common Applications: Steam lines, water pipes, gases, dilute acids, alkalis, solvents, and refrigerants.

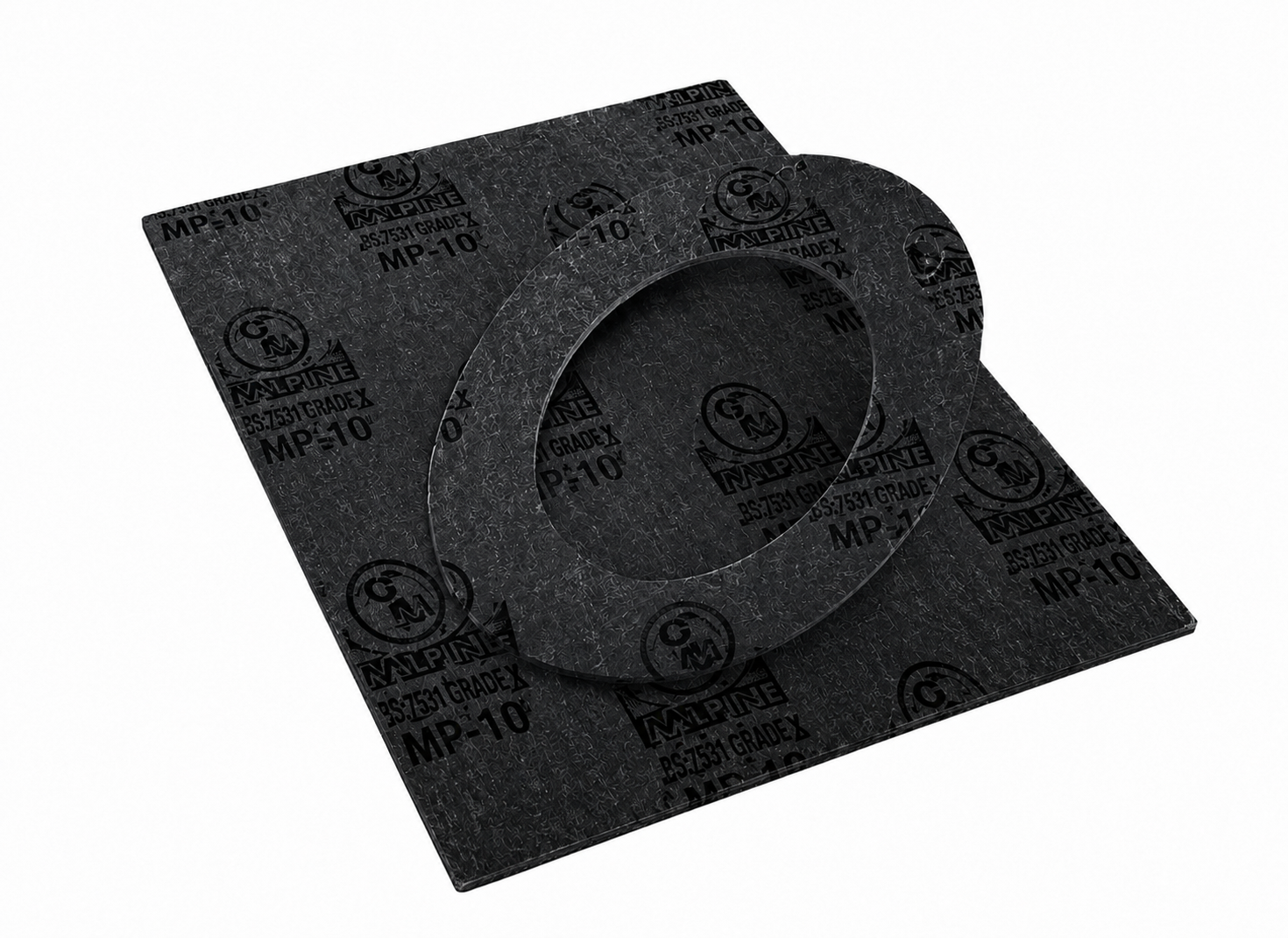

CHAMPION AF139 High Pressure

Composition: Compressed fibre jointing sheet made with aramid and inorganic fibres using NBR binder.

Suitability: Soft-cut gasket for a wide range of media including hydrocarbons, oils, solvents, steam, gases, glycols, and aqueous solutions.

Specifications

• Max Operating Temperature: 380°C (Short term peak), 270°C (Continuous)
• Max Operating Pressure: 100 bar
• Common Applications: Refinery lines, petrochemical joints, oil processing, steam lines, glycols, and aqueous solutions.

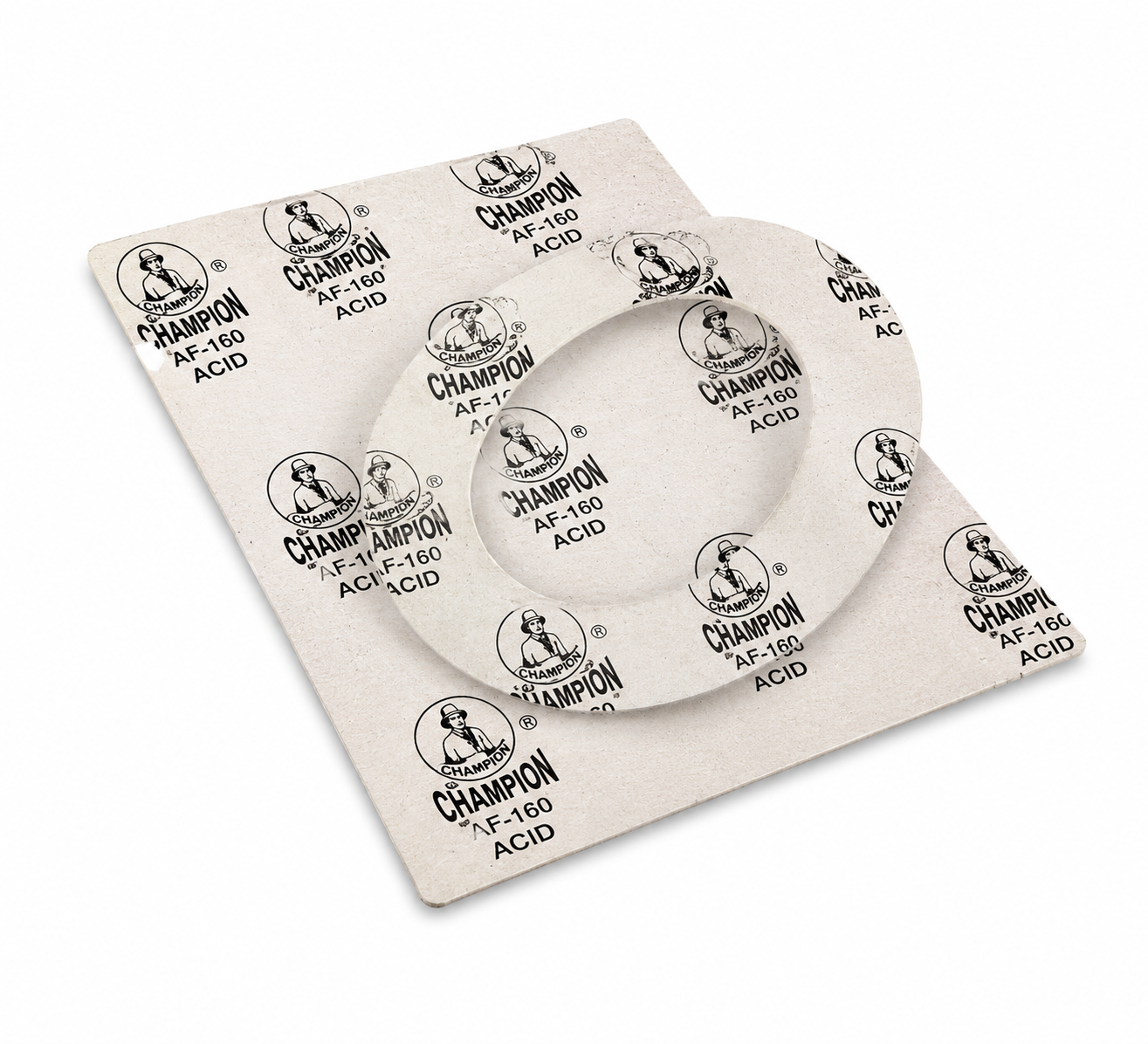

CHAMPION AF154 Super

Composition: Heat-resisting aramid fibres and nitrile elastomeric binders.

Suitability: Extreme industrial sealing applications handling solvents, gases, steam, dilute acids, and alkalis.

Specifications

• Max Operating Temperature: 400°C (Short term peak), 300°C (Continuous)
• Max Operating Pressure: 110 bar
• Common Applications: Power generation, high-temperature chemical piping, heat exchangers, extreme industrial sealing.

CHAMPION AF159 Oil

Composition: Aramid fibre, functional fillers, and NBR binders.

Suitability: Oil-resistant applications in oil engines, generators, pumps, fuels, hydraulic equipment, and hydrocarbon-related service conditions.

Specifications

• Max Operating Temperature: 350°C (Short term peak), 250°C (Continuous)
• Max Operating Pressure: 80 bar
• Common Applications: Diesel generators, automotive engines, hydraulic cylinders, fuel systems, and engine pumps.

CHAMPION AF160 Acid

Composition: Chemical-resistant compressed fibre jointing sheet.

Suitability: Acid and chemical resistant applications, including organic acids, concentrated acids, alkalis, and corrosive chemical media.

Specifications

• Max Operating Temperature: 250°C (Short term peak), 180°C (Continuous)
• Max Operating Pressure: 50 bar
• Common Applications: Chemical storage vessels, acid processing lines, alkalis transport, and corrosive industrial media joints.

CHAMPION AF190

Composition: Aramid fibre, graphite, carbon, HNBR elastomers, additives, and specialty chemicals.

Suitability: Premium universal sealing under high temperature and pressure. Works for steam, oils, hydrocarbons, solvents, fuels, refrigerants, and gases.

Specifications

• Max Operating Temperature: 450°C (Short term peak), 330°C (Continuous)
• Max Operating Pressure: 130 bar
• Common Applications: Critical flange sealing, high-temp steam lines, hydrocarbon pipelines, refrigerants and solvent handling.

CHAMPION AF K11

Composition: High dielectric-strength asbestos-free universal jointing sheet.

Suitability: Insulating gasket material suitable for oils, water, steam, gases, salt solutions, fuels, alcohols, acids, hydrocarbons, lubricants, refrigerants, and food-industry use.

Specifications

• Max Operating Temperature: 300°C
• Dielectric Strength: High insulation parameters
• Common Applications: Electrical insulation gaskets, food processing industries, drinking water lines, alcohols and hydrocarbons storage.

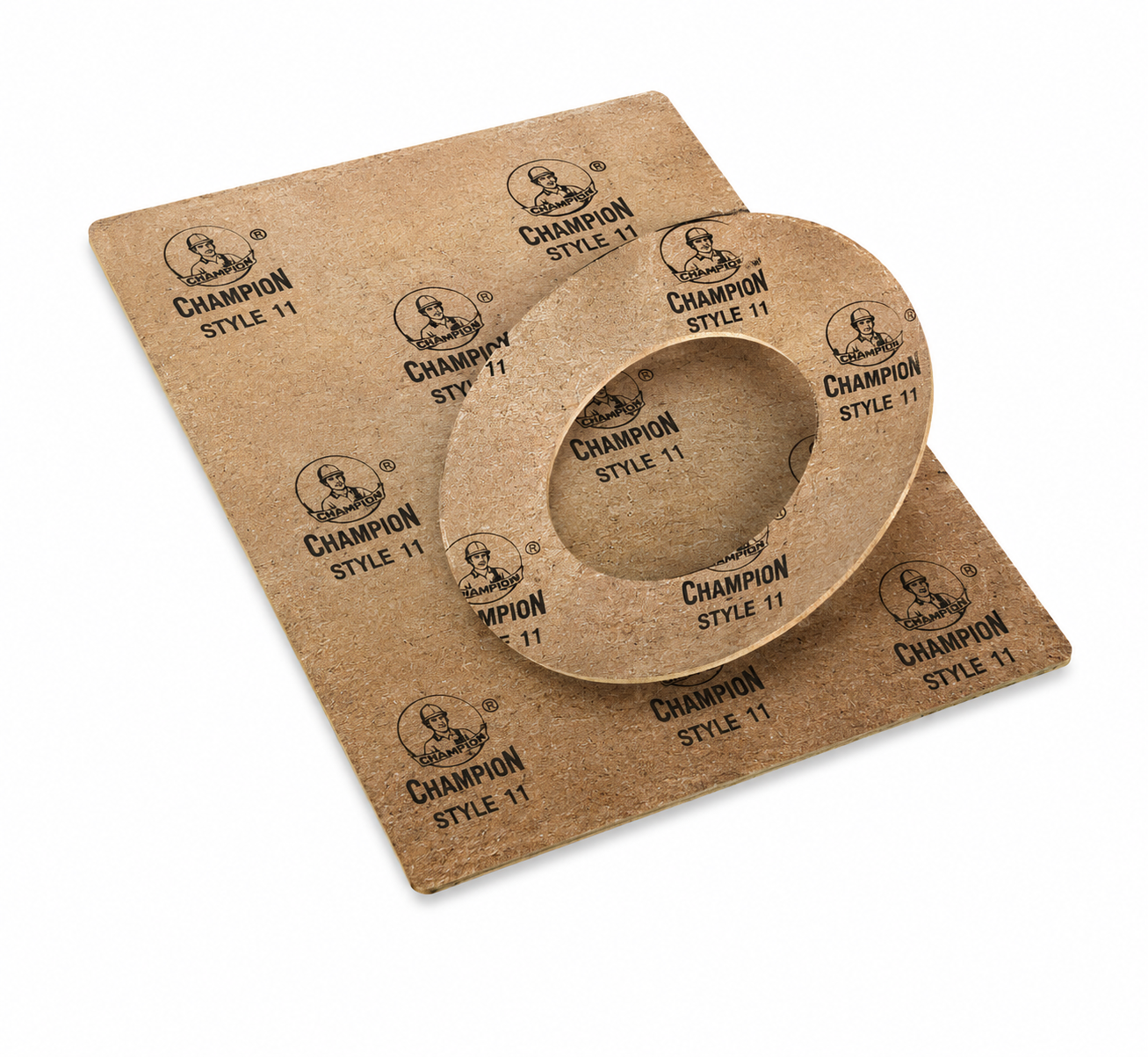

CHAMPION STYLE 11

Composition: Compressed fibre jointing sheet with economical fillers and binders.

Suitability: General-purpose applications for low to medium service conditions.

Specifications

• Max Temperature: 380°C
• Common Media: Saturated steam, water, gases, light acids, and alkalies.
• Common Applications: General engineering, non-critical process lines, plumbing and HVAC joints.

CHAMPION STYLE 20 RED

Composition: High-grade steam jointing fibre sheet with specialized red fillers and binders.

Suitability: General-purpose, medium-duty steam sealing applications.

Specifications

• Color: Red
• Max Operating Temperature: 415°C
• Common Applications: Saturated and superheated steam lines, boilers, radiators, hot water pipe flanges.

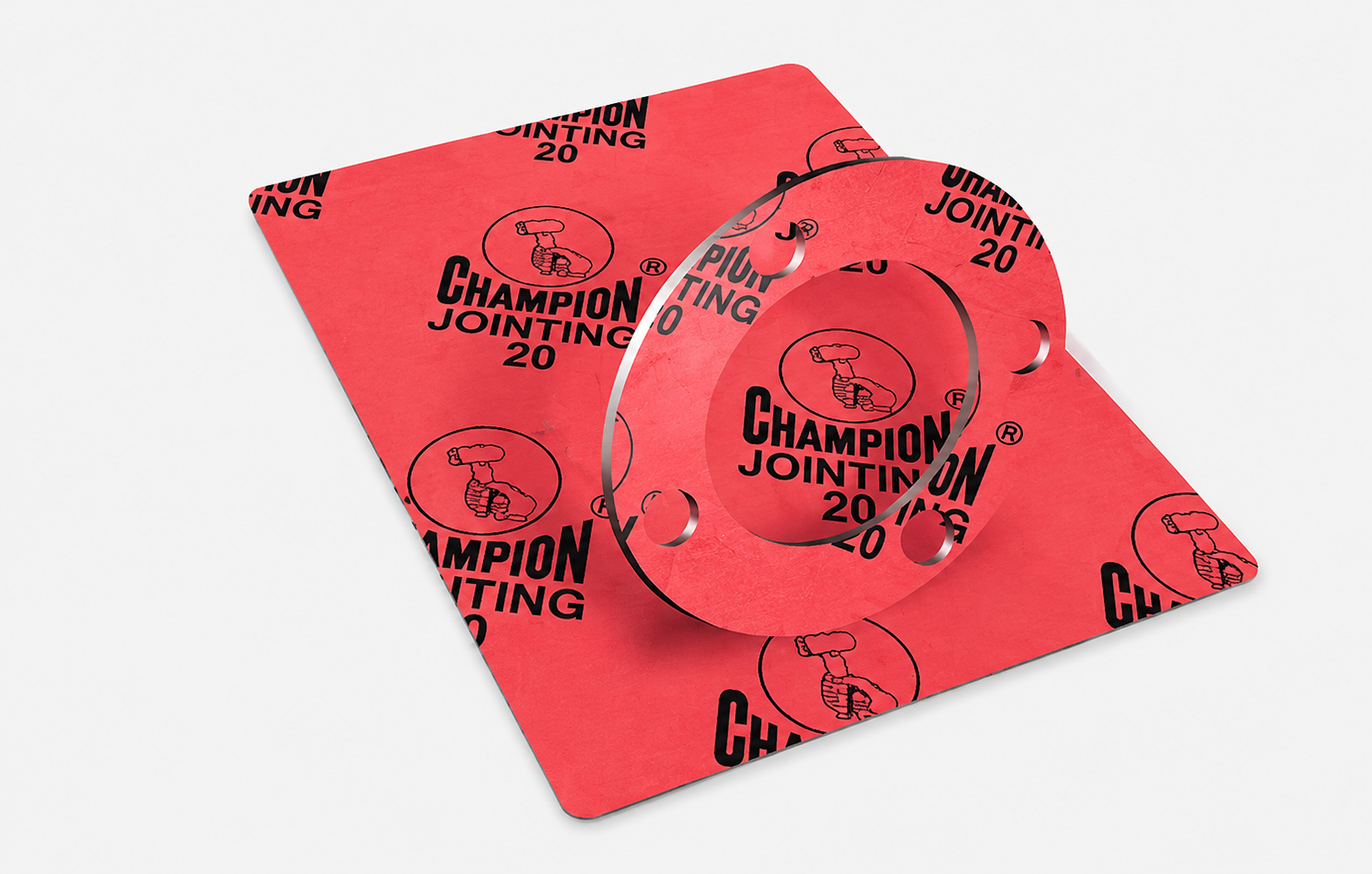

CHAMPION STYLE 39 OIL

Composition: Premium fibre, functional fillers, and oil-resistant elastomeric binders.

Suitability: Oil, fuel, steam, and hydrocarbon-focused sealing in petrochemicals, refineries, and general engineering.

Specifications

• Max Operating Temperature: 415°C
• Common Media: Petrochemicals, refinery oils, steam, gases, solvents, engine fuels, and general engineering fluids.
• Common Applications: Pipeline flanges in oil refineries, engine covers, pump joints, petroleum distilleries.

CHAMPION 51 HIGH PRESSURE

Composition: High-pressure compressed fibre jointing sheet.

Suitability: Steam and high-pressure gas sealing in petrochemicals, refineries, distillates, and heavy process industries.

Specifications

• Max Operating Temperature: 515°C
• Max Operating Pressure: High pressure rating compliance.
• Common Applications: Petrochemical pipelines, power station steam pipes, refinery boilers, distillates lines, and process reactors.

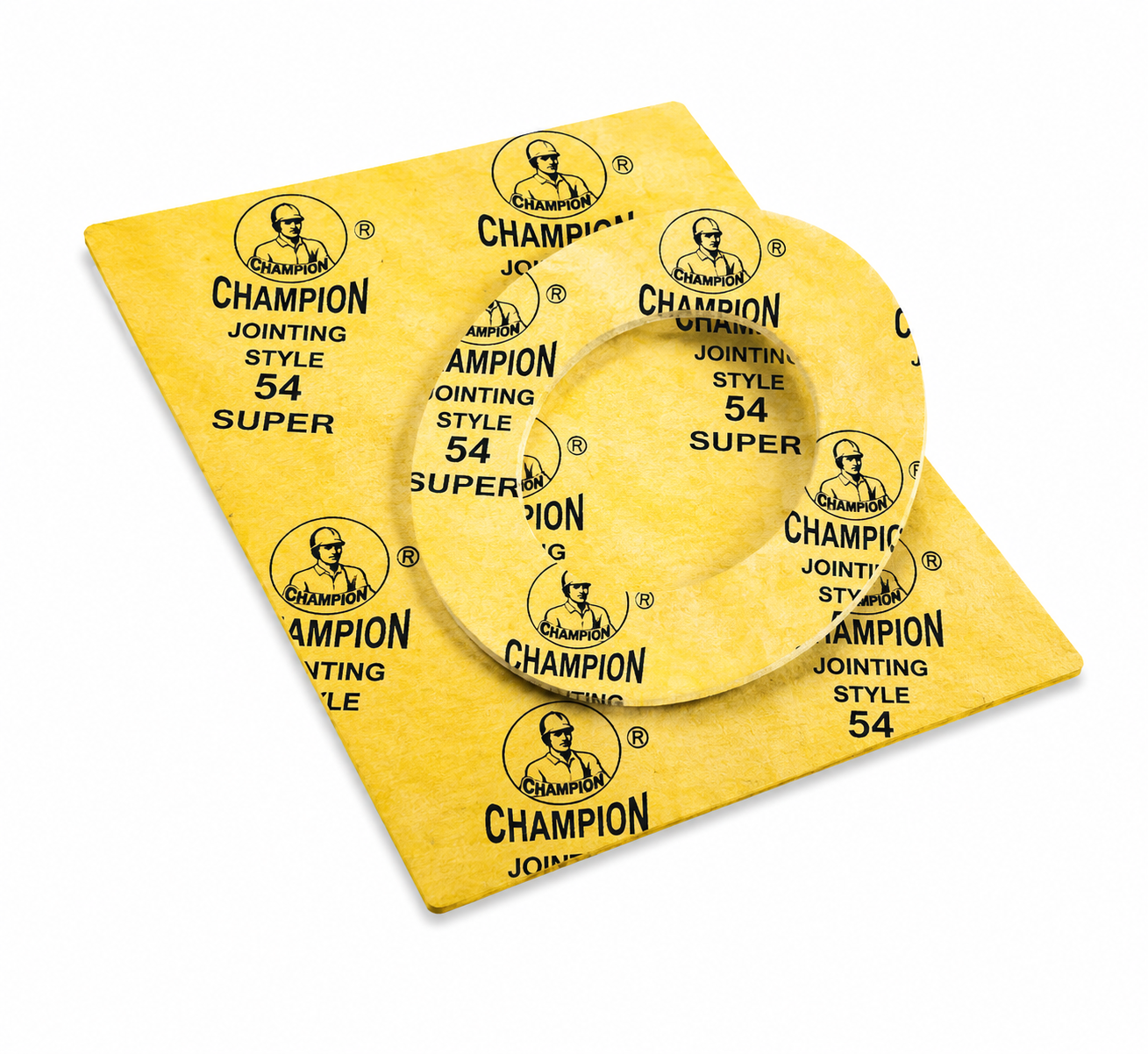

CHAMPION STYLE 54 SUPER

Composition: Premium-grade compressed asbestos fibre jointing sheet with high heat-resisting materials.

Suitability: Superheated steam, boiler systems, air separation units, petroleum distillates, oil refineries, diesel generators, and marine engines.

Specifications

• Max Operating Temperature: 550°C
• Max Operating Pressure: Extreme pressure conditions.
• Common Applications: Superheated steam lines, engine head gaskets, exhaust manifolds, gas turbines, marine propulsion setups.

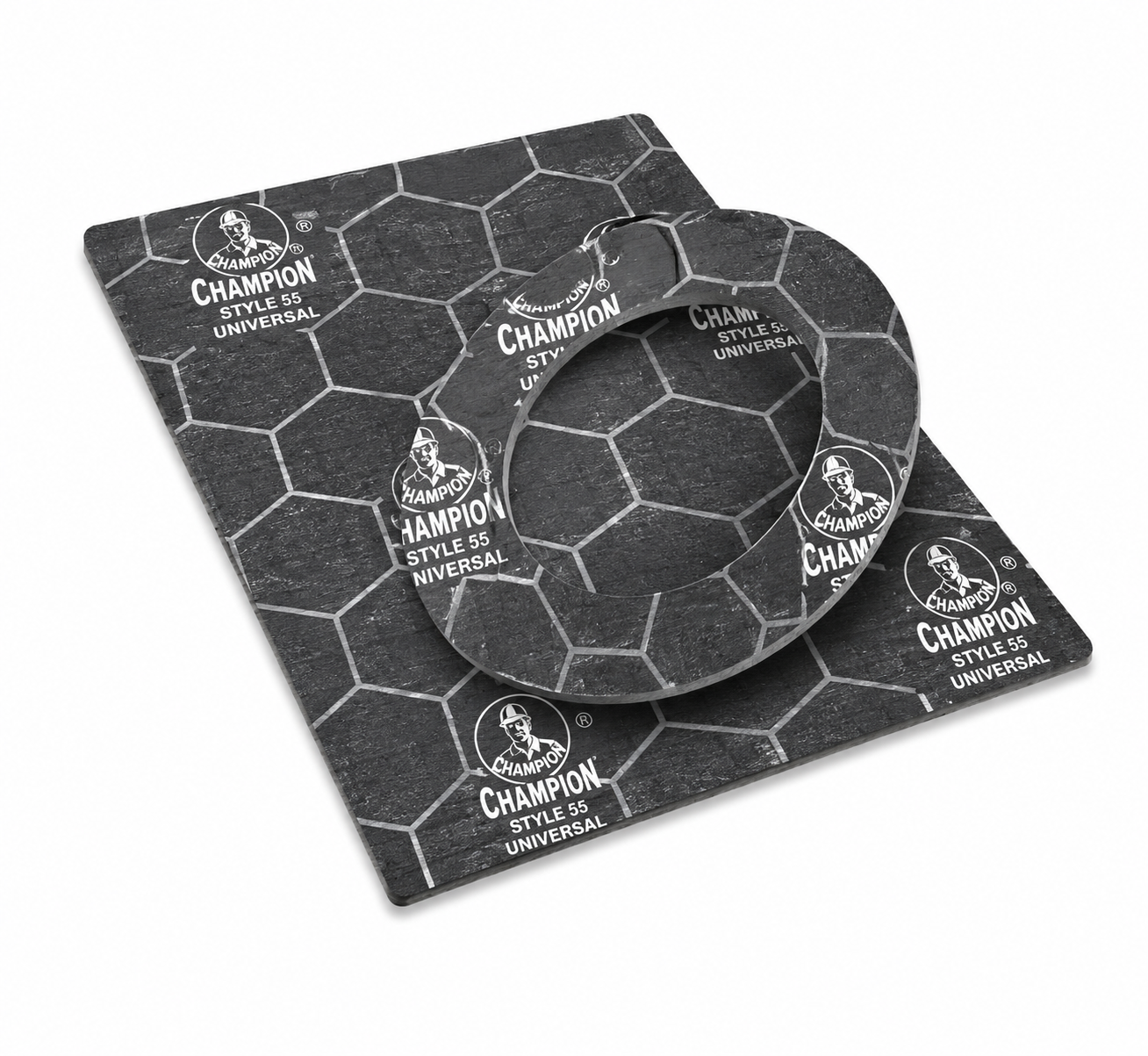

CHAMPION STYLE 55 UNIVERSAL

Composition: Premium universal compressed fibre sheet.

Suitability: High pressure fluctuations, high vibration, narrow flange joints, boilers, air compressors, cylinder heads, and internal combustion engines.

Specifications

• Max Operating Temperature: 550°C
• Special Features: High recovery, resistance to structural vibrations and cyclic pressure shifts.
• Common Applications: Cylinder head gaskets, reciprocating compressors, diesel engine blocks, marine boilers, and high-vibration piping joints.

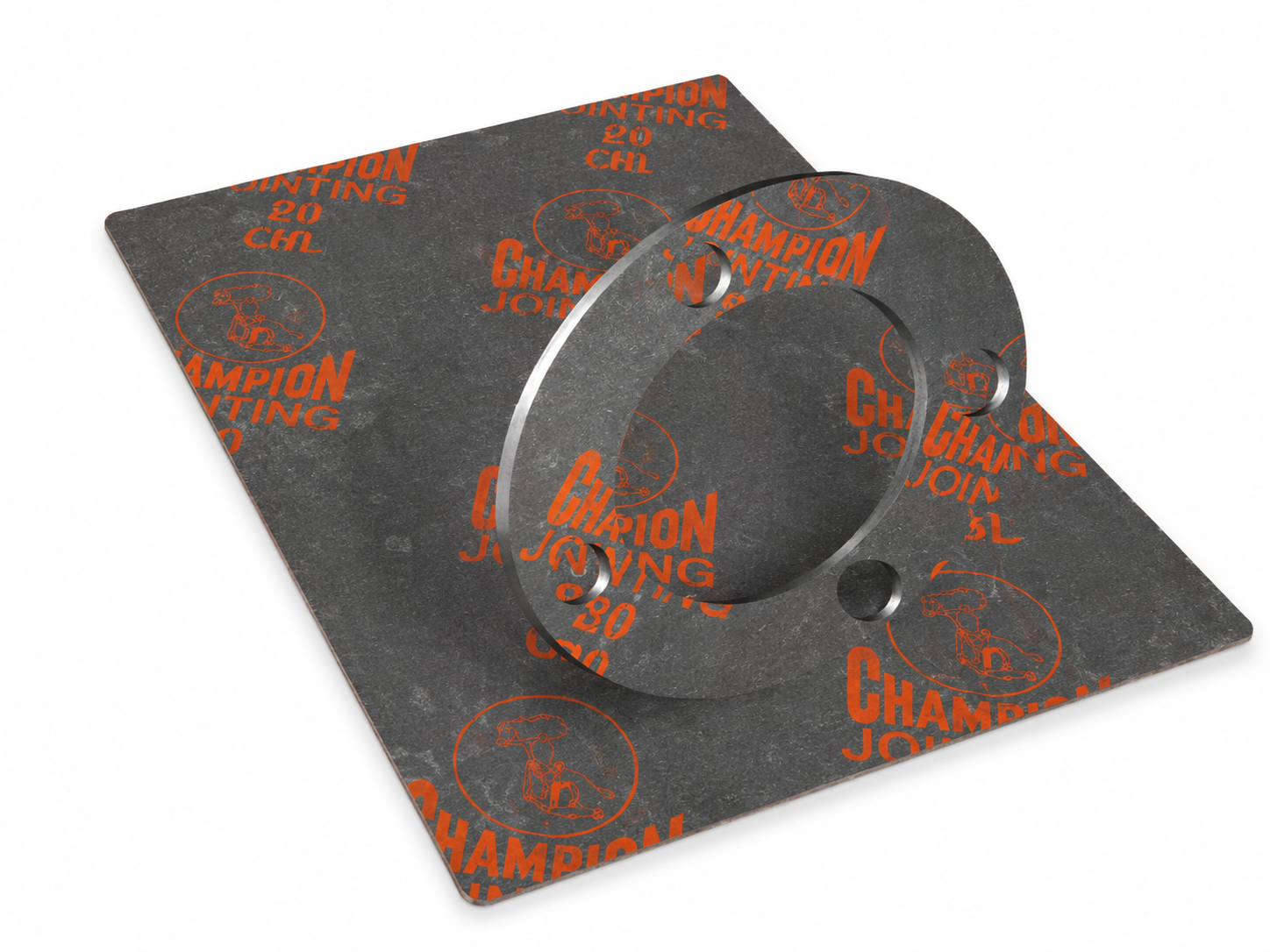

CHAMPION STYLE 59 OIL PREMIUM

Composition: Premium quality asbestos fibres with highly oil-resistant elastomeric binders.

Suitability: Oil, grease, lubricants, solvents, petroleum distillates, oil refining, refrigerants, and aromatic substances.

Specifications

• Max Operating Temperature: 550°C
• Common Media: Engine oil, kerosene, diesel, lubricating grease, Freon/refrigerants, organic solvents, and light distillates.
• Common Applications: Refinery piping networks, engine casings, refrigerant compressor flanges, solvent processing tanks.

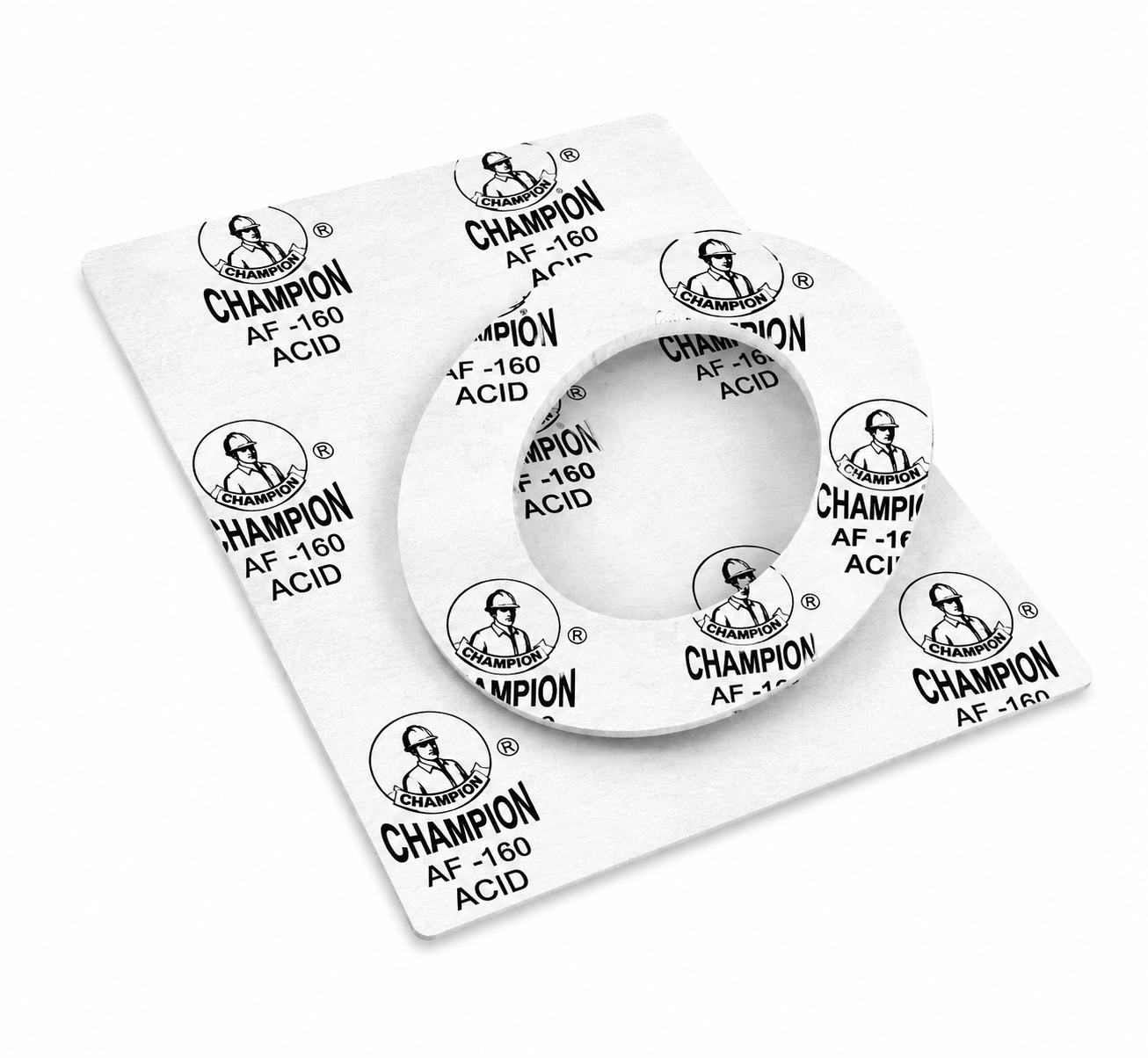

CHAMPION STYLE 60 ACID

Composition: Premium acid-resistant compressed fibre gasket sheet.

Suitability: Corrosive media, hot concentrated organic and inorganic acids, hydrochloric acid, sulphuric acid, and nitric acid.

Specifications

• Max Operating Temperature: 300°C
• Common Media: Hydrochloric acid, Nitric acid, Sulphuric acid, organic chemical solvents, concentrated chemical bases.
• Common Applications: Chemical processing reactors, acid storage pipelines, chemical transport pumps, fertilizer manufacturing plants.

Type G Spiral Wound Gasket (Gasket Only)

Design: Spiral wound metallic sealing element only, constructed without inner or centering rings.

Suitability: Best for tongue-and-groove, male-female, and groove flanges. Ideal where the sealing width is restricted.

Specifications

• Available Materials: Carbon Steel, SS 304, SS 316, SS 316L, SS 321, SS 347, Monel 400, Inconel, and Alloy 20.
• Fillers: PTFE, Expanded Graphite.
• Applications: Valves, high-pressure pumps, tongue-and-groove flange joints, space-restricted flanges.

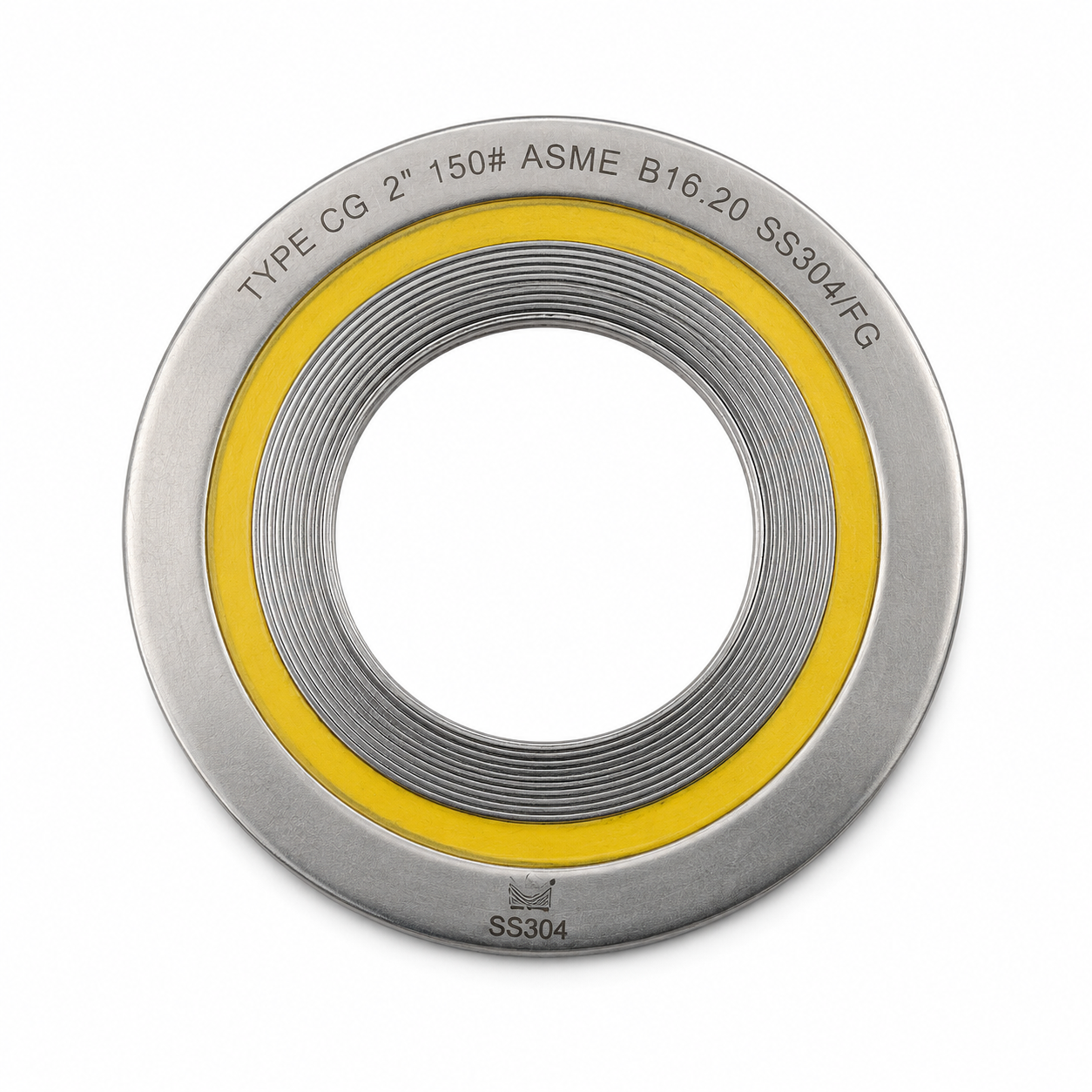

Type CG Spiral Wound Gasket (Centering Ring)

Design: Sealing element combined with a solid metallic centering (outer) ring.

Suitability: Standard ASME B16.20 gaskets for raised-face and flat-face flanges. The outer ring centers the gasket on flange bolts, acts as a compression stop, and prevents blow-out.

Specifications

• Outer Ring Materials: Carbon Steel (painted/plated), Stainless Steel 304, 316.
• Winding Materials: Carbon Steel, SS 304, SS 316, SS 316L, SS 321, SS 347, Monel, Inconel.
• Fillers: Graphite, PTFE.
• Applications: Standard pipelines, raised face flanges, process industries, utility lines.

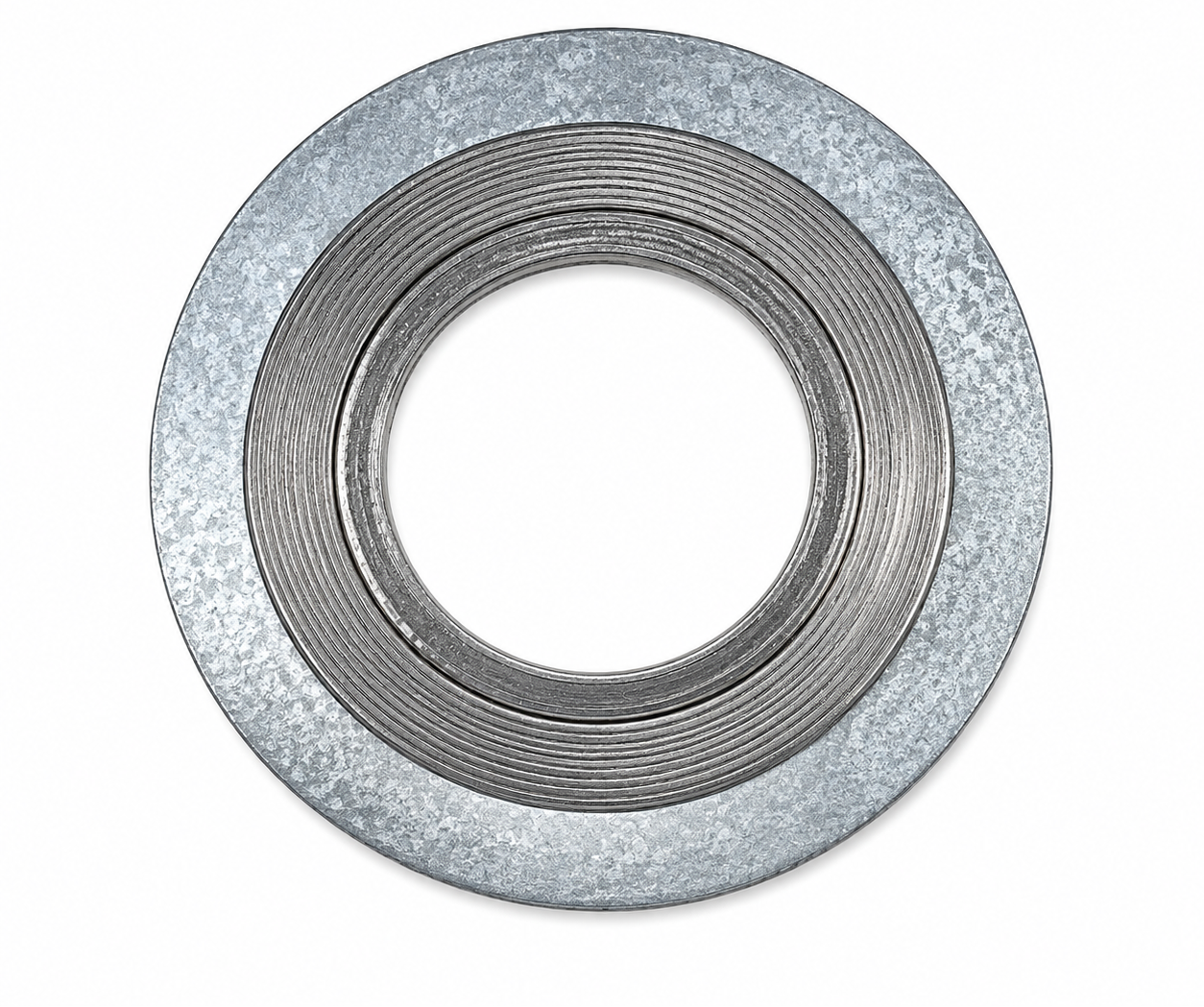

Type GI Spiral Wound Gasket (Inner Ring Only)

Design: Sealing element combined with a solid metallic inner ring.

Suitability: Suitable for pressure vessels, boilers, manholes, caps, covers, and groove flange applications. The inner ring prevents turbulent fluid flow and protects the winding from process media.

Specifications

• Inner Ring Materials: SS 304, SS 316, SS 316L, SS 321, SS 347, Monel, Inconel.
• Winding Materials: SS 304, SS 316, SS 316L, Monel, Inconel, Alloy 20.
• Fillers: Graphite, PTFE.
• Applications: High pressure boilers, vessel manholes, vacuum systems, pumps, and groove flanges.

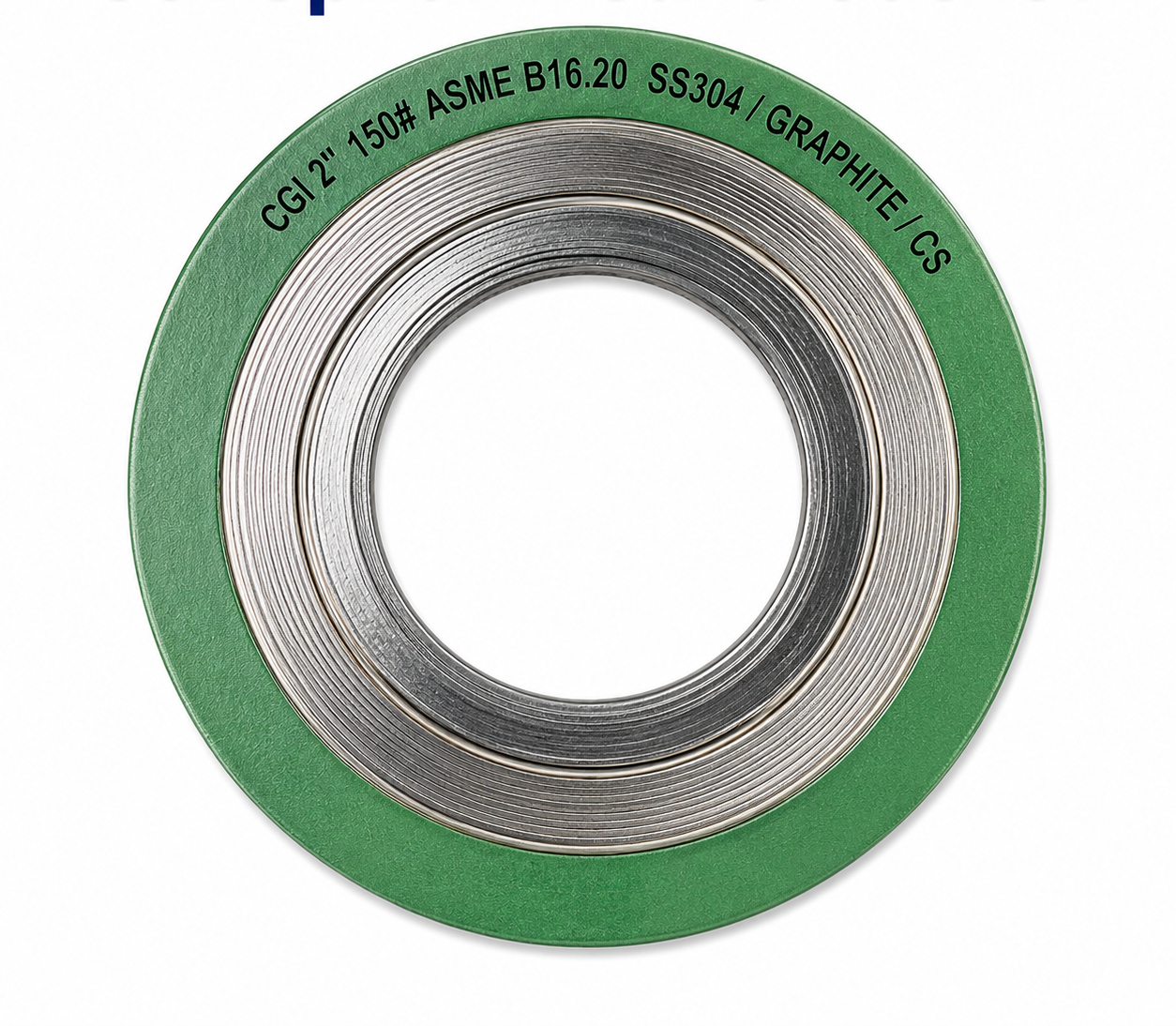

Type CGI Spiral Wound Gasket (Centering & Inner Rings)

Design: Heavy-duty design featuring a sealing element, solid metallic outer centering ring, and solid metallic inner ring.

Suitability: The ultimate sealing solution for high-pressure, high-temperature, vacuum service, corrosive/toxic process media, and critical pipeline nodes. Inner ring protects from heat and corrosion; outer ring centers and acts as a compression stop.

Specifications

• Materials: Carbon Steel (outer ring), SS 316L/304/321/347/Monel/Inconel/Alloy 20 (inner ring & winding).
• Fillers: Expanded Graphite / virgin PTFE.
• Standards: ASME B16.20, EN, JIS, DIN, PN.
• Applications: Hydrocarbon lines, refineries, critical chemical vessels, reactors, and high pressure piping.

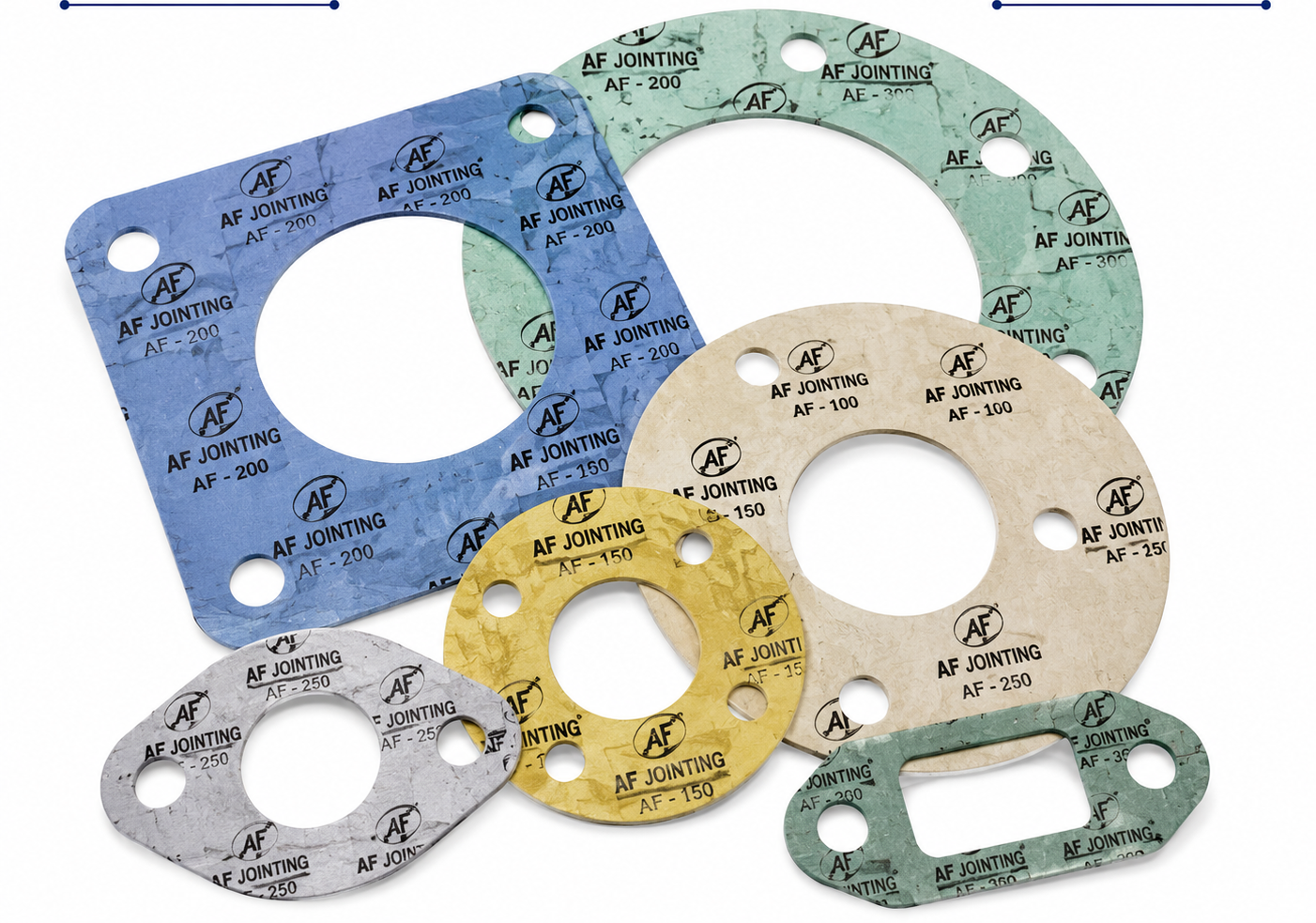

AF Jointing Pre-Cut Gaskets

Overview: Pre-cut gaskets cut from high-grade asbestos-free fibre jointing sheets (like Champion AF range).

Suitability: General-purpose industrial sealing across water lines, steam pipes, engine oil circuits, and low-pressure gas applications.

Specifications

• Sizing: Sized as per ASME B16.21 for ASME B16.5 flanges. Custom sizes also cut as per DIN, IS, BS, and user drawings.
• Features: Excellent torque retention, environment-friendly sealing, clean edges.

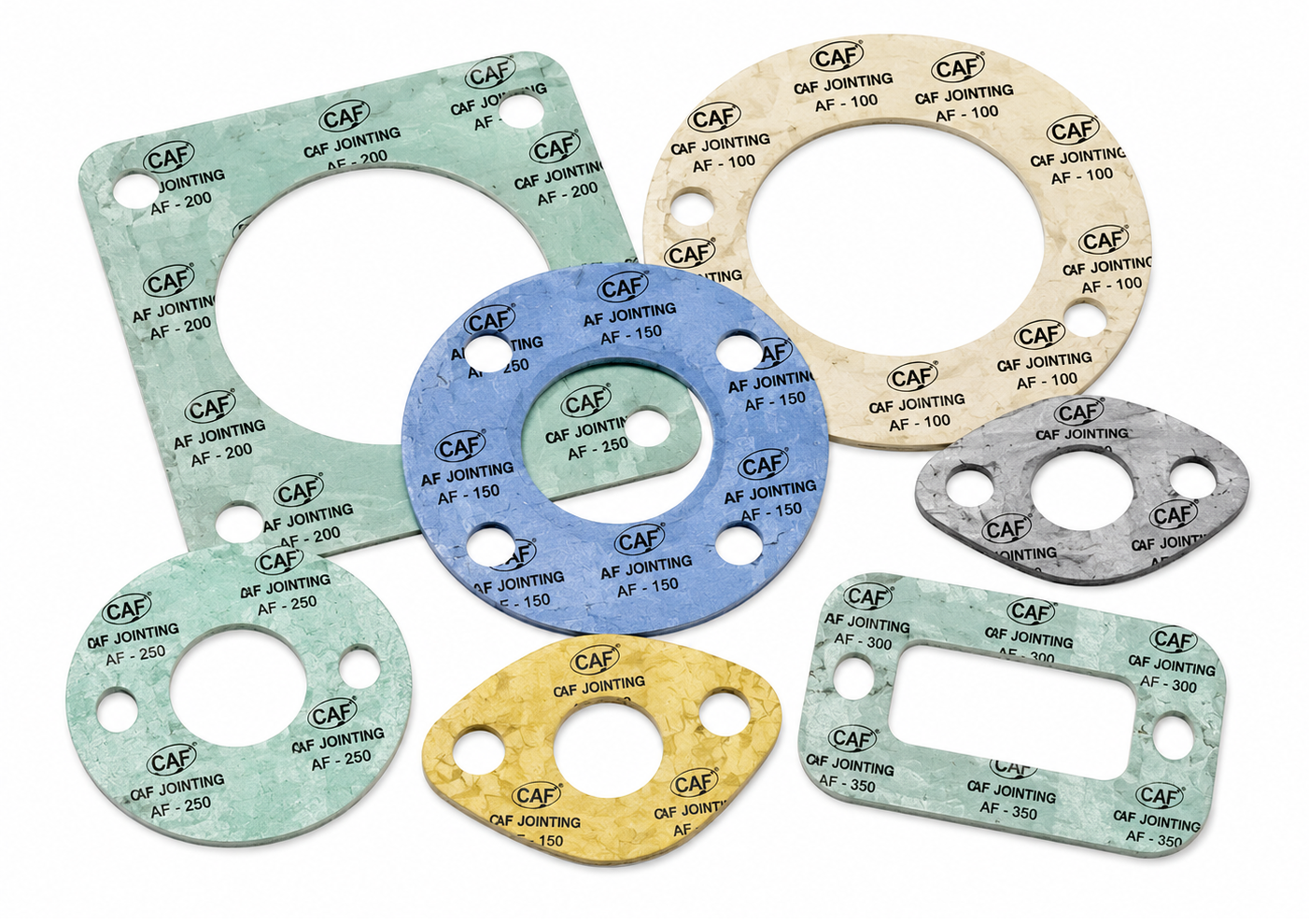

CAF Pre-Cut Gaskets

Overview: Pre-cut gaskets manufactured from high-quality compressed asbestos fibre (CAF) sheets (like Champion Style range).

Suitability: Broad industrial flange sealing, pipe joint connections, pumps casing sealing, valve bonnets, and general engineering assemblies.

Specifications

• Sizes: Fits all standard ASME B16.21, IS, DIN, or custom dimensions.
• Benefits: Highly economical, reliable sealing under high pressure and temperature transitions.

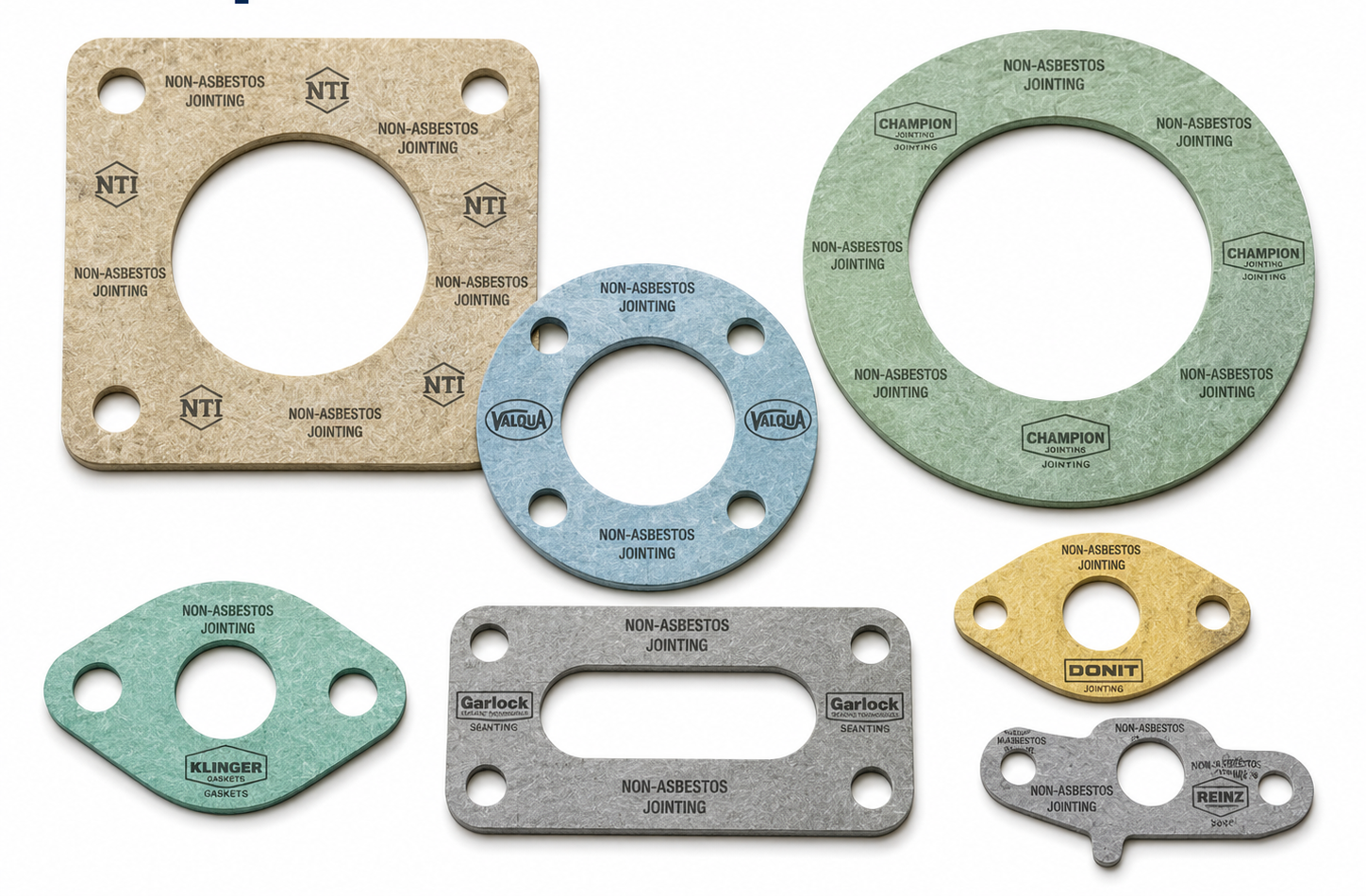

Compressed Non-Asbestos Pre-Cut Gaskets

Overview: Environmentally friendly gasket option made using synthetic fibers (aramid, carbon, etc.) and elastomer binders.

Suitability: Complies with modern eco-regulations. Ideal for petrochemicals, marine, process, and utility industries where non-asbestos sealing is mandatory.

Specifications

• Standards Compliance: Sizes fully conforming to ASME, DIN, BS, and IS standards.
• Features: Excellent mechanical stability, low gas permeability, chemical resistance.

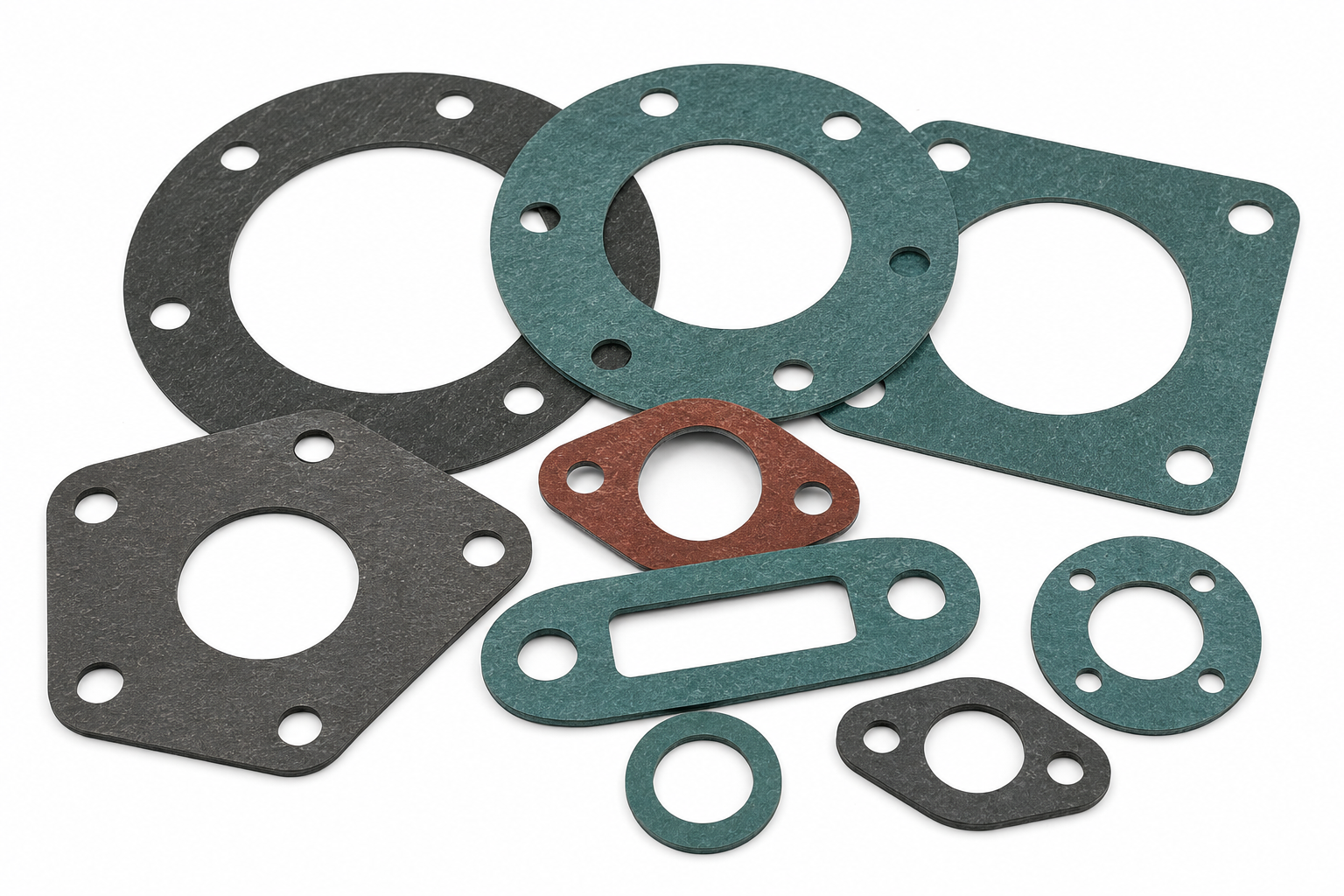

Elastomeric Fibre Sheet Gaskets

Overview: Pre-cut gaskets made from composite elastomeric sheets reinforced with functional organic or mineral fibers.

Suitability: Low to medium-duty pipeline sealing, packaging lines, cooling water joints, and non-critical process interfaces.

Specifications

• Benefits: Highly flexible, adapts well to uneven or warped flanges, easy torque seating.
• Dimensions: Standard or customized custom cut options.

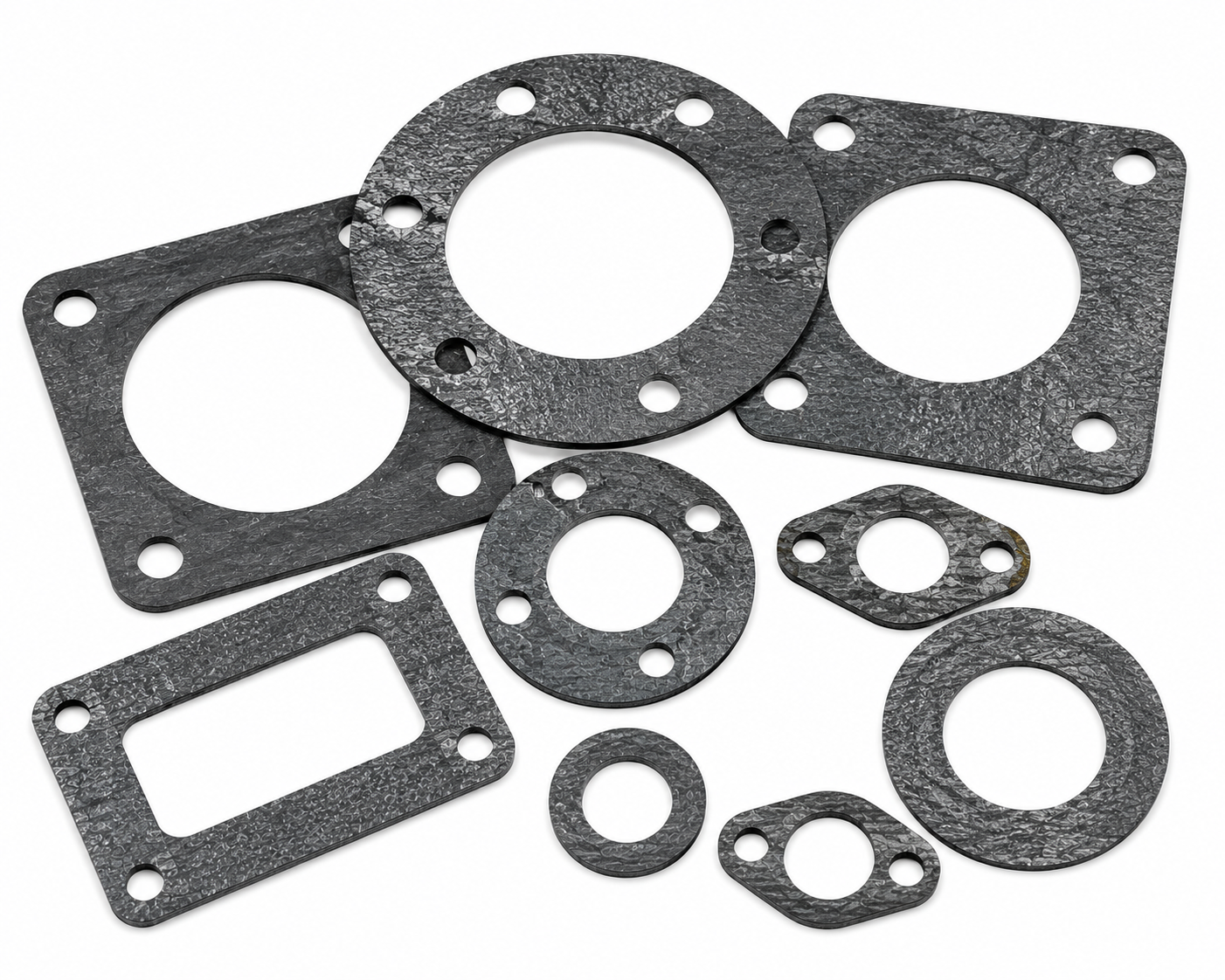

Flexible Graphite Pre-Cut Gaskets

Overview: Premium pre-cut gaskets cut from flexible graphite sheets, optionally reinforced with metallic tanged or wire mesh inserts.

Suitability: High-temperature steam connections, hydrocarbons, oil refining circuits, power utilities, and aggressive critical processes.

Specifications

• Max Temperature: Up to 650°C (steam), 450°C (oxidizing atmospheres).
• Features: Exceptional thermal conductivity, chemical inertness, excellent recovery, and zero creep.
